JORDAN HYDROELECTRIC PLANT

INSTALLATION WORK WEEK OF 8-29-11



>>HOME<

2 UNITS 4.5 MW

----UNDER CONSTRUCTION----

2- MODULAR KAPLAN TURBINE GENERATOR UNITS

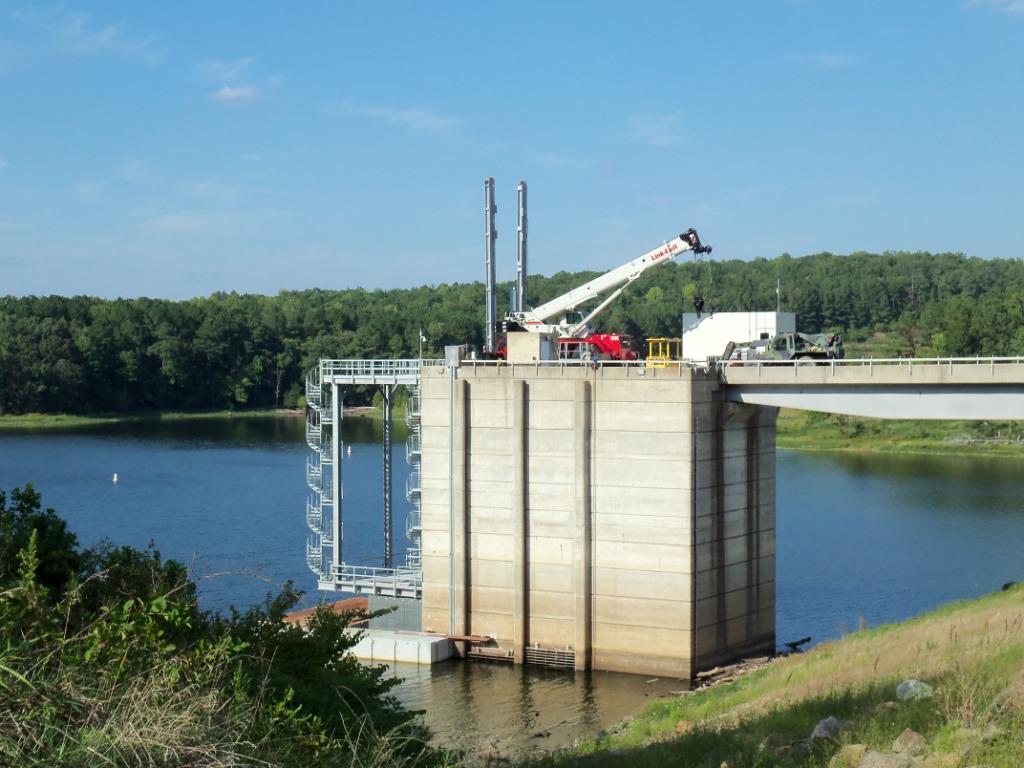

US ARMY CORPS OF ENGINEERS' DAM

---JORDAN DAM INSTALLATION---

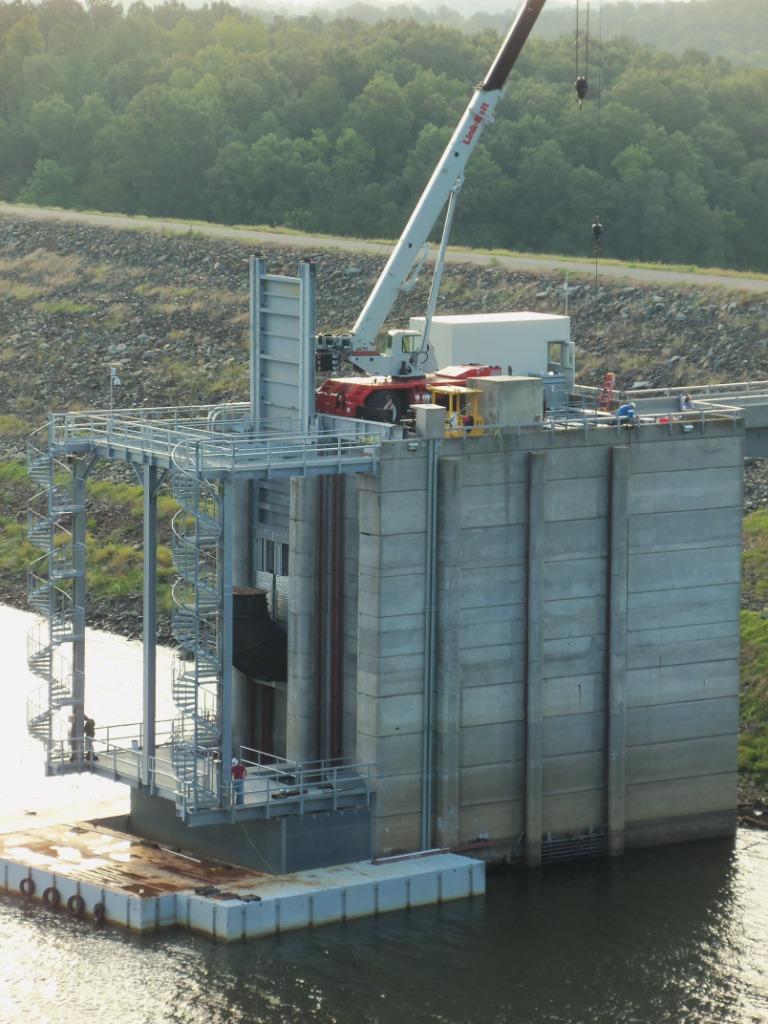

Module 1 East bay slot installation

Week of 8-29-11

* Note

Downstream portion of the module is installed into the east bay slot to confirm proper operation of the lift system and fit of the module into the concrete slot.

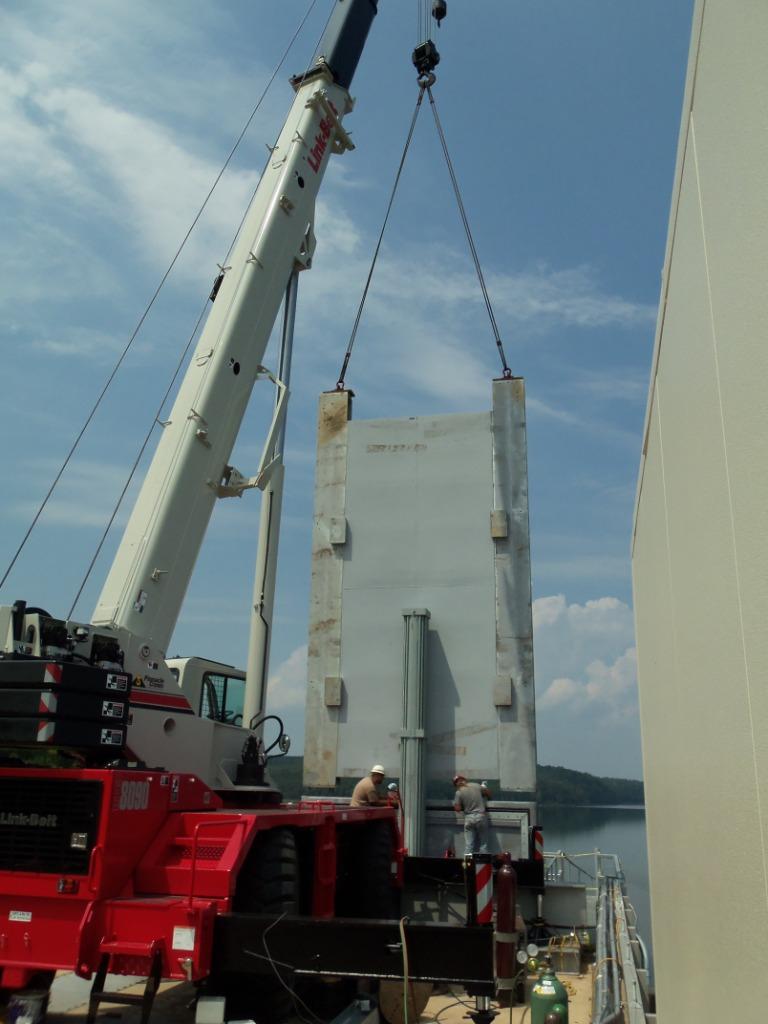

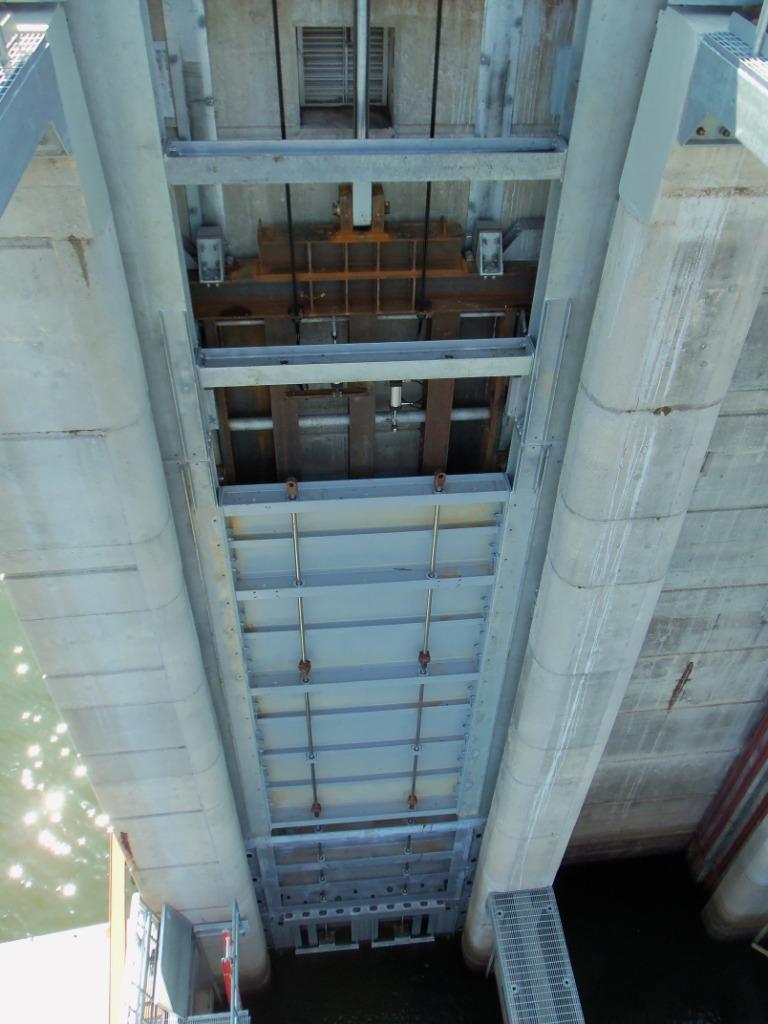

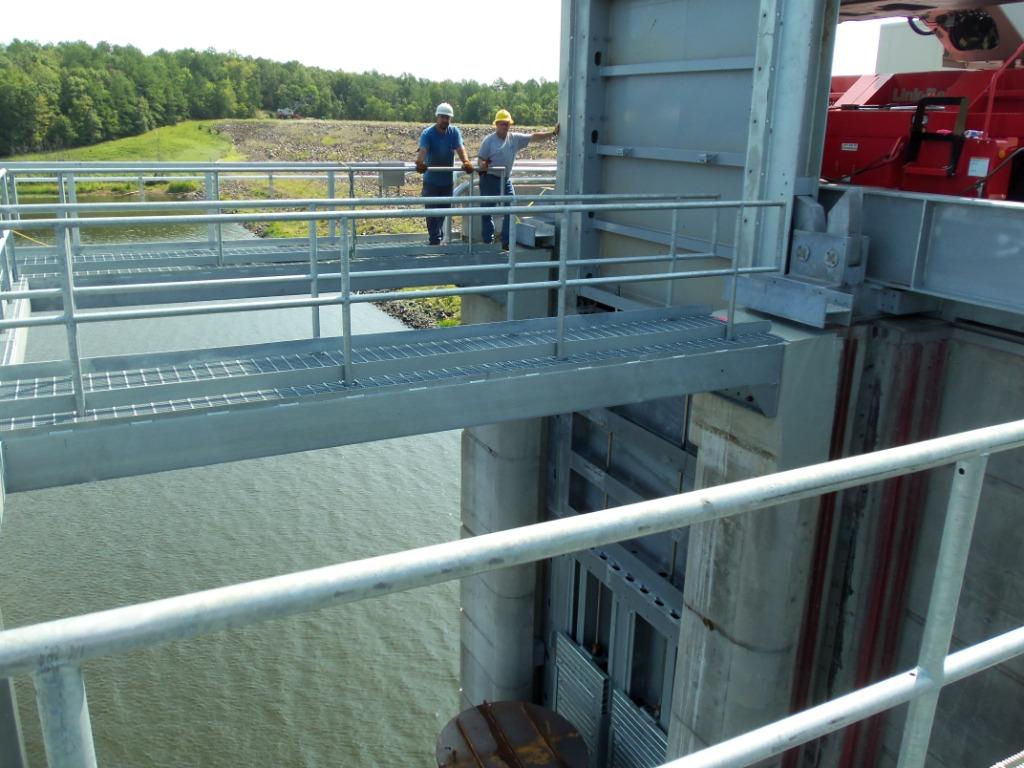

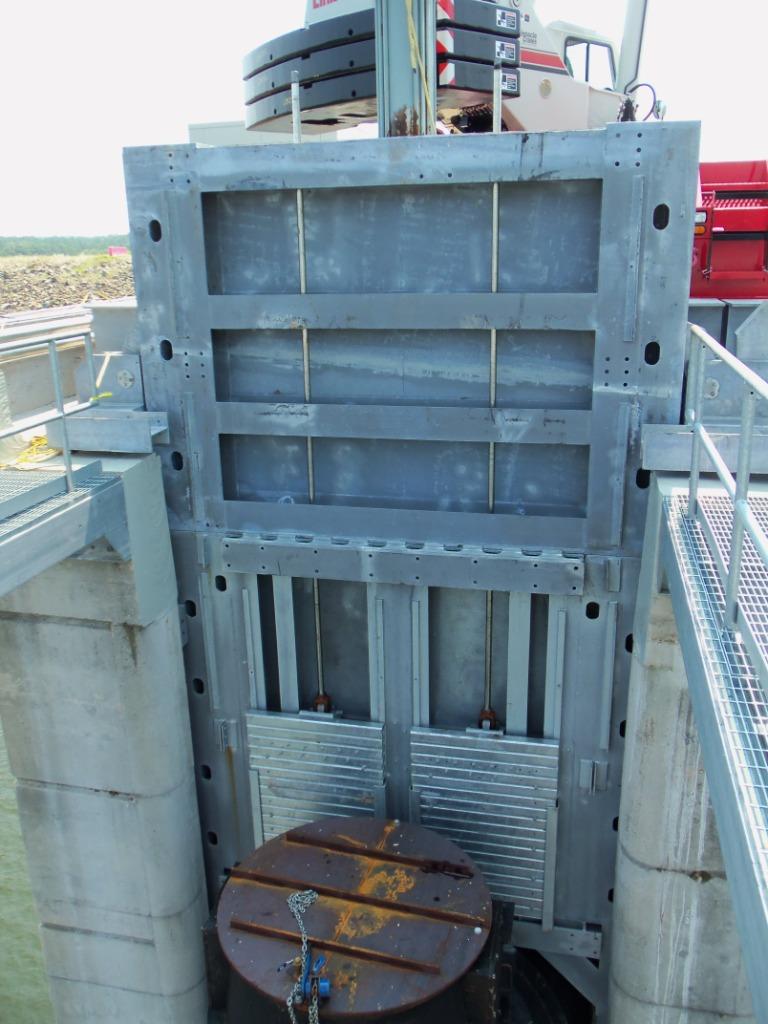

30 feet tall headgate section installed in slot - weight = 58,000 pounds

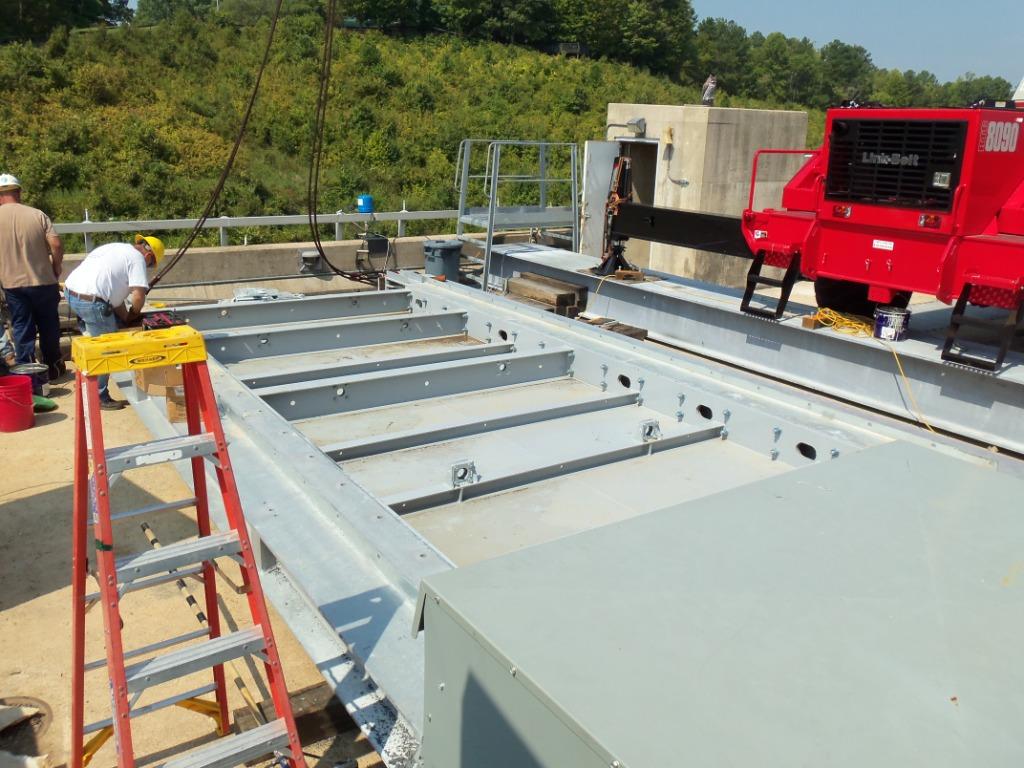

25 tall downstream flume wall - weight = 21,300 pounds

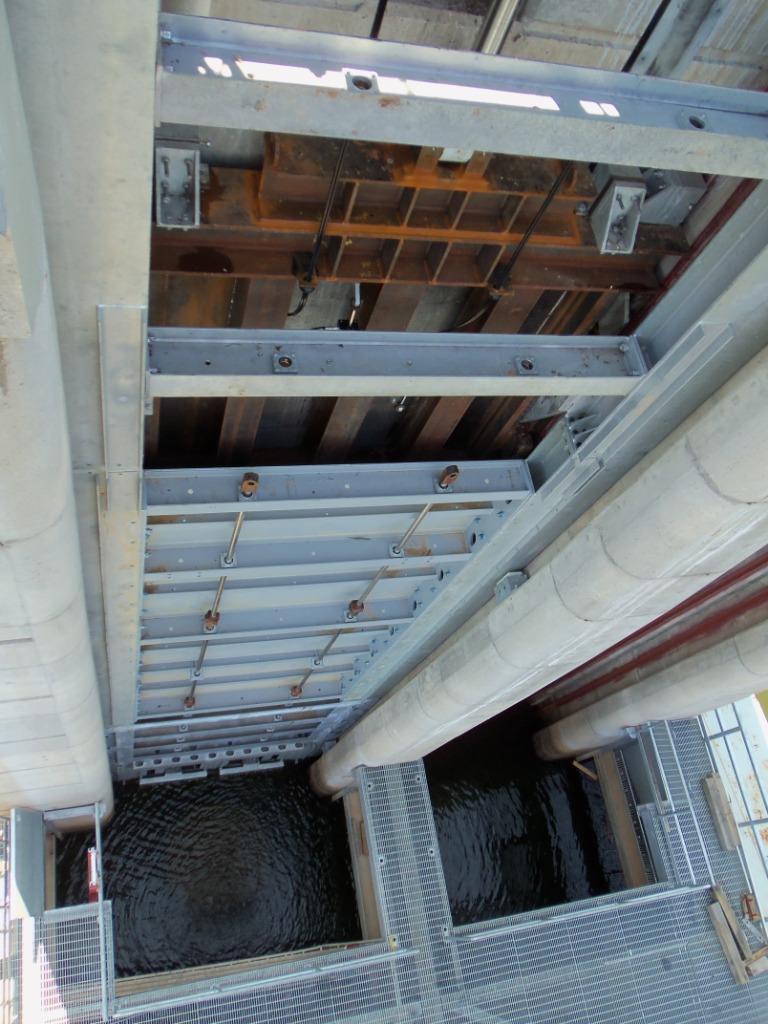

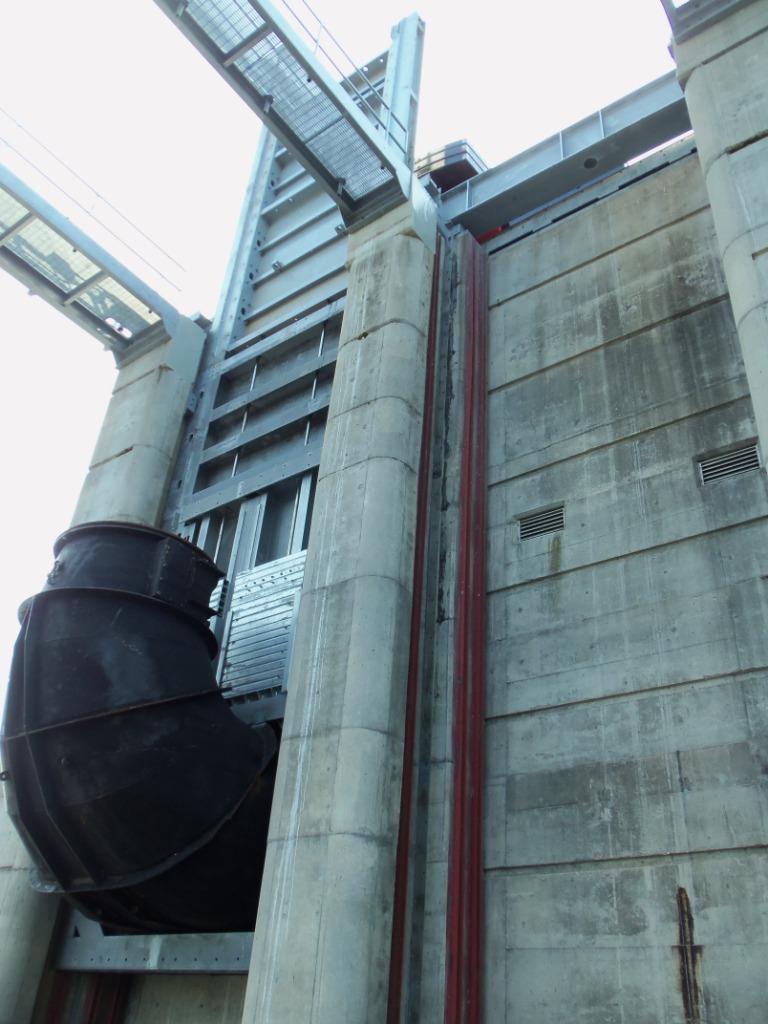

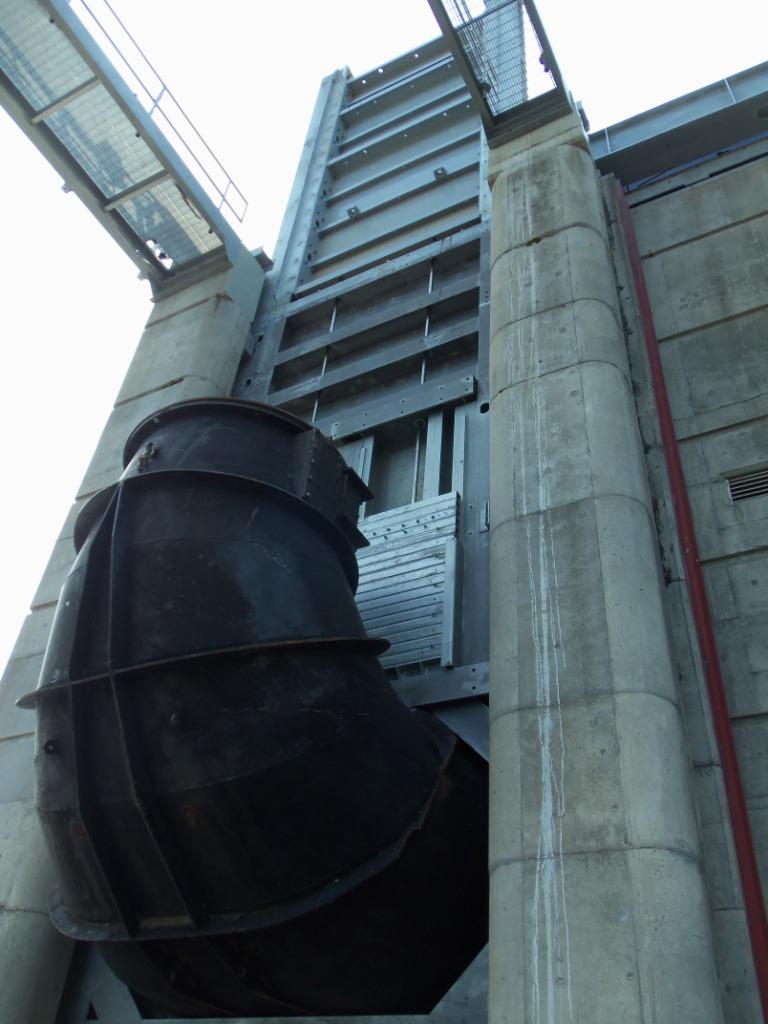

View of headgate section and flume section - 55 feet tall

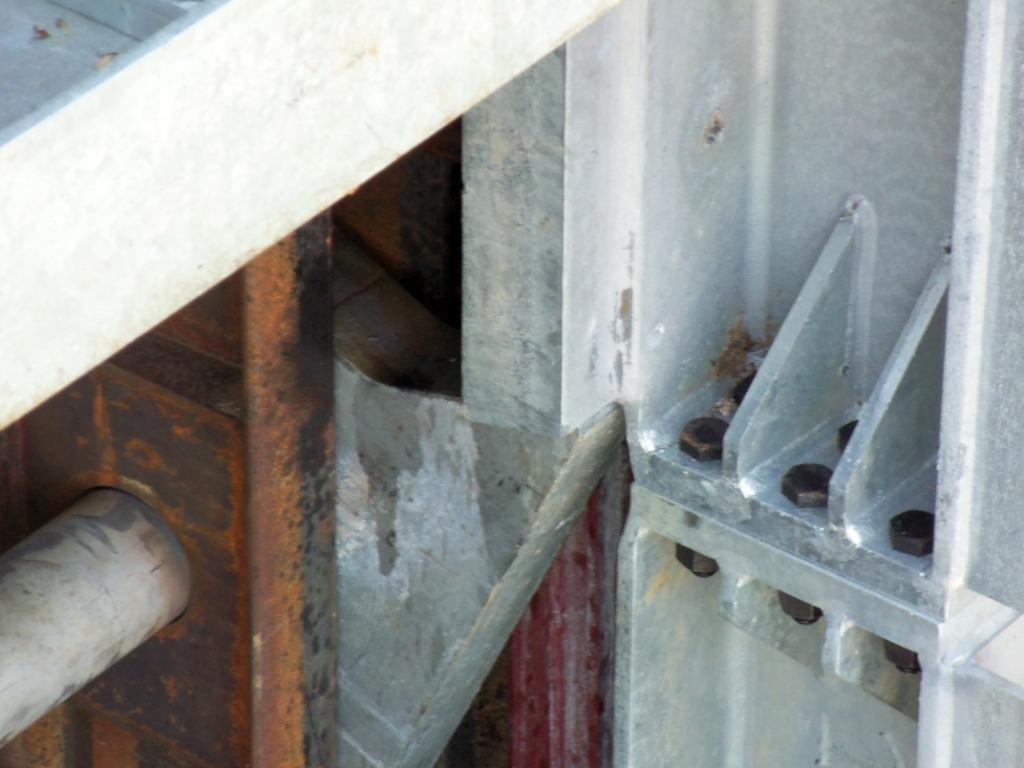

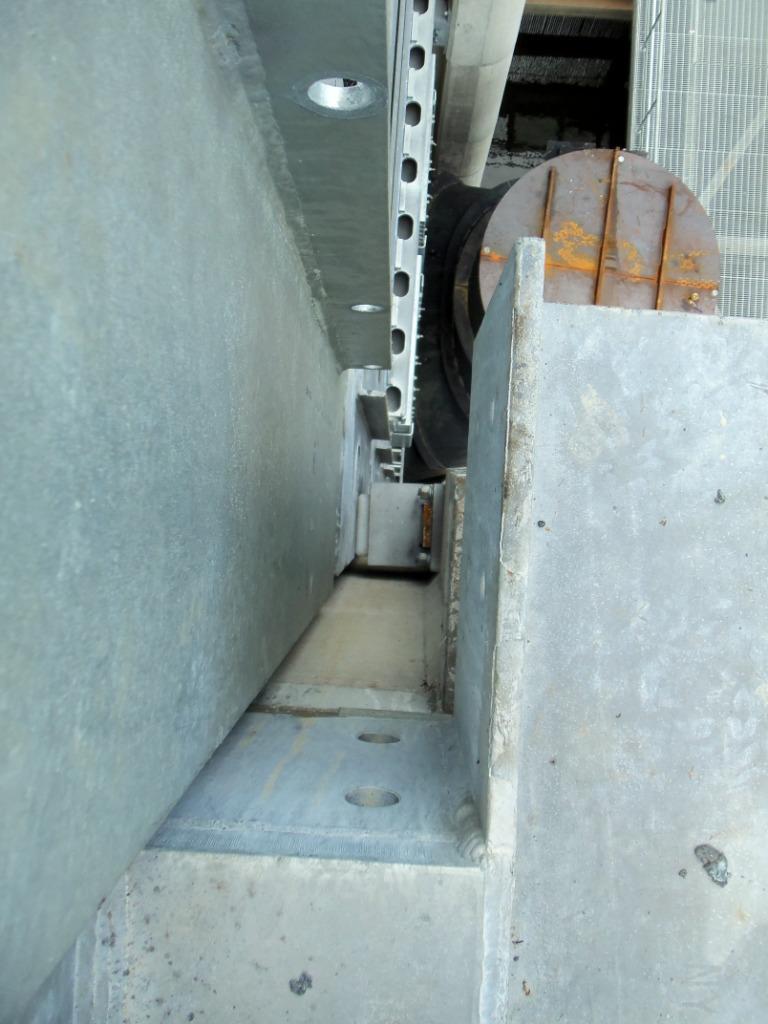

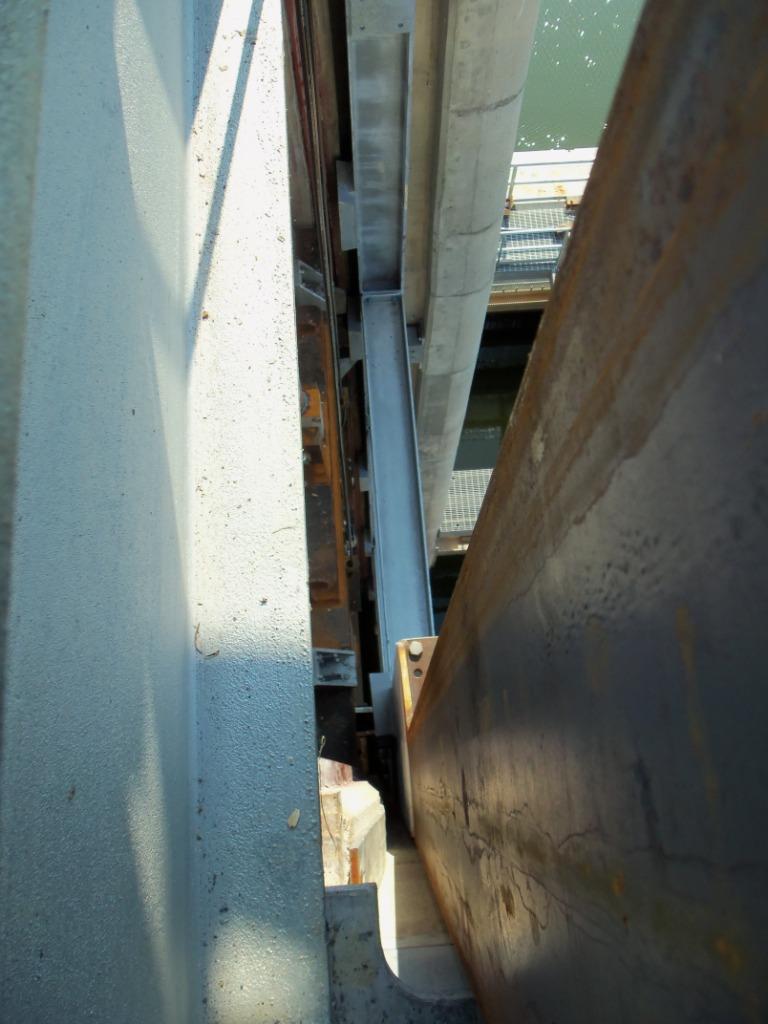

Bottom  view - clearance with slot guide channels

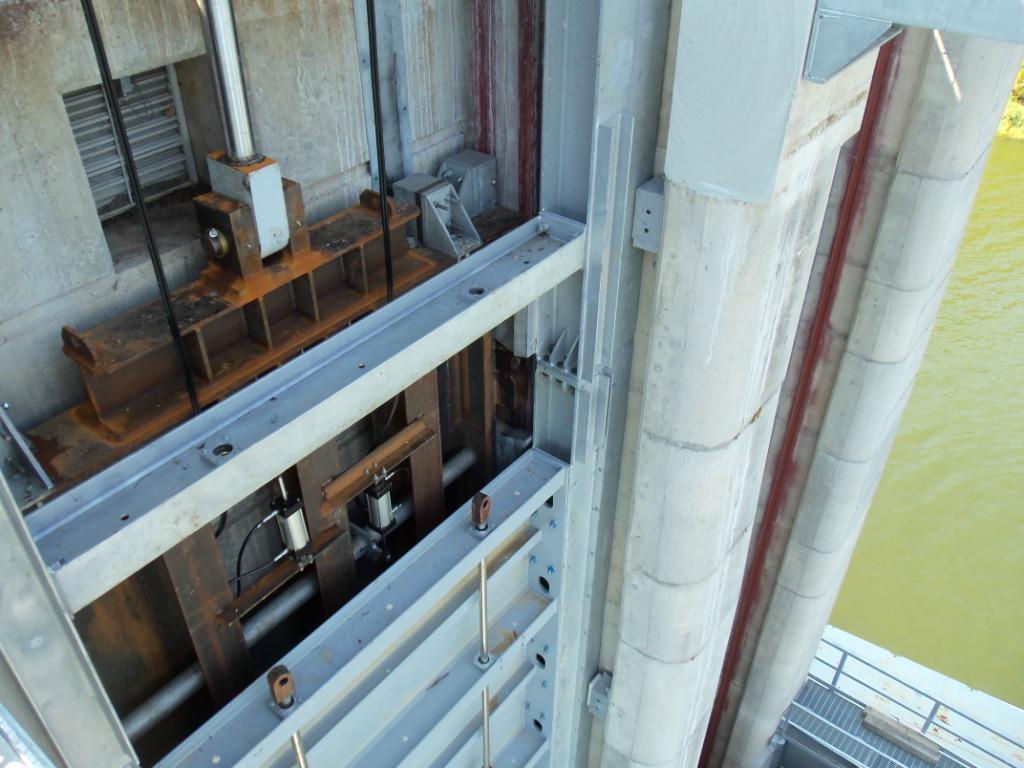

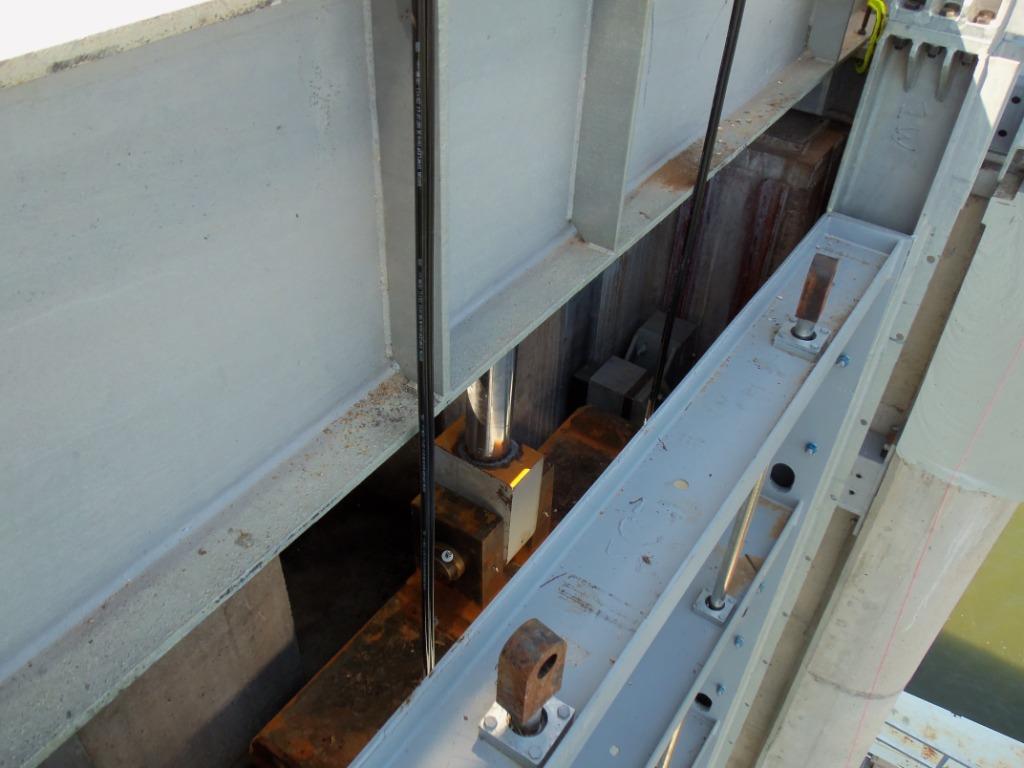

Dogging arms supporting headgate and flume sections

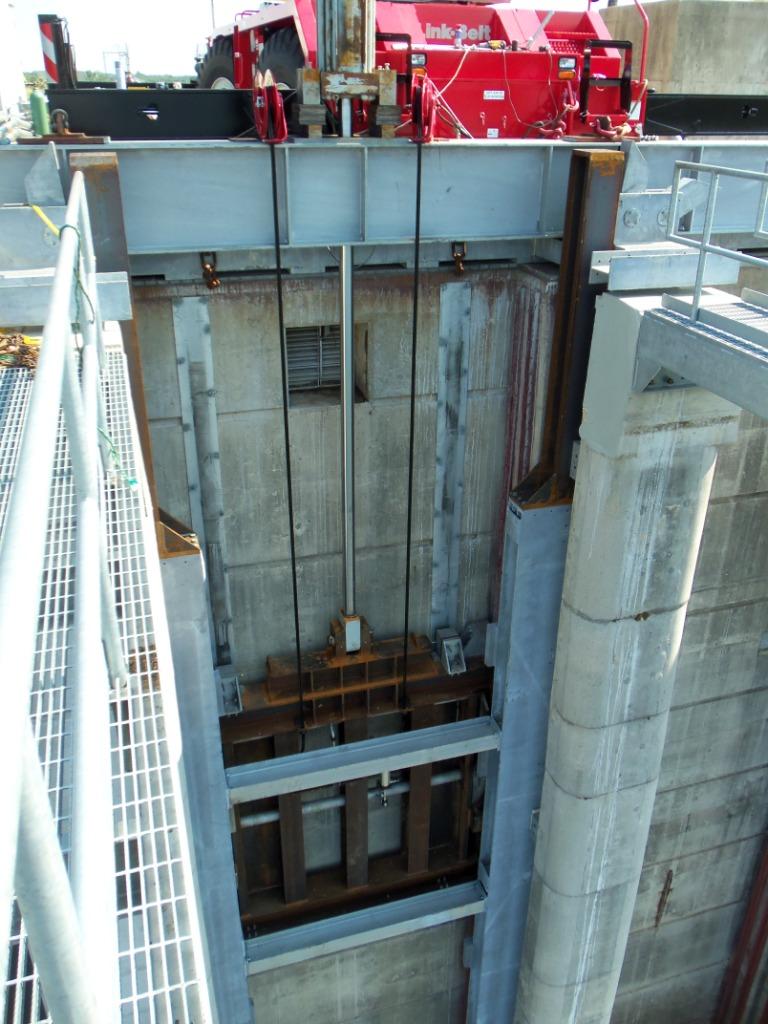

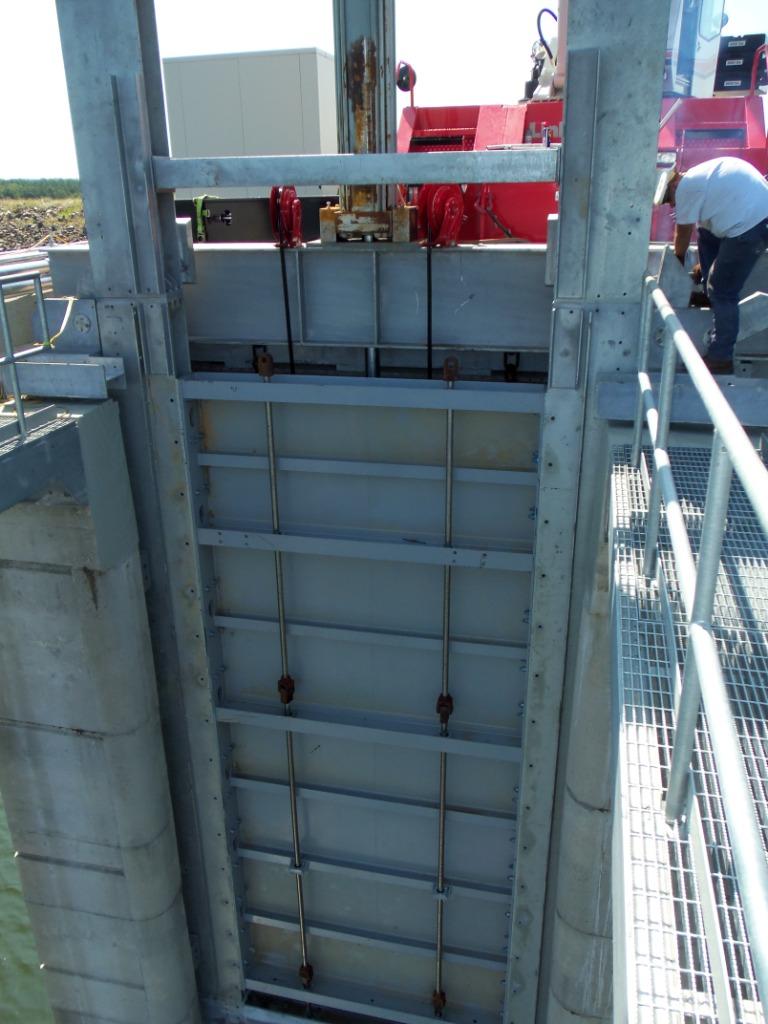

Spillgate operator stem installation

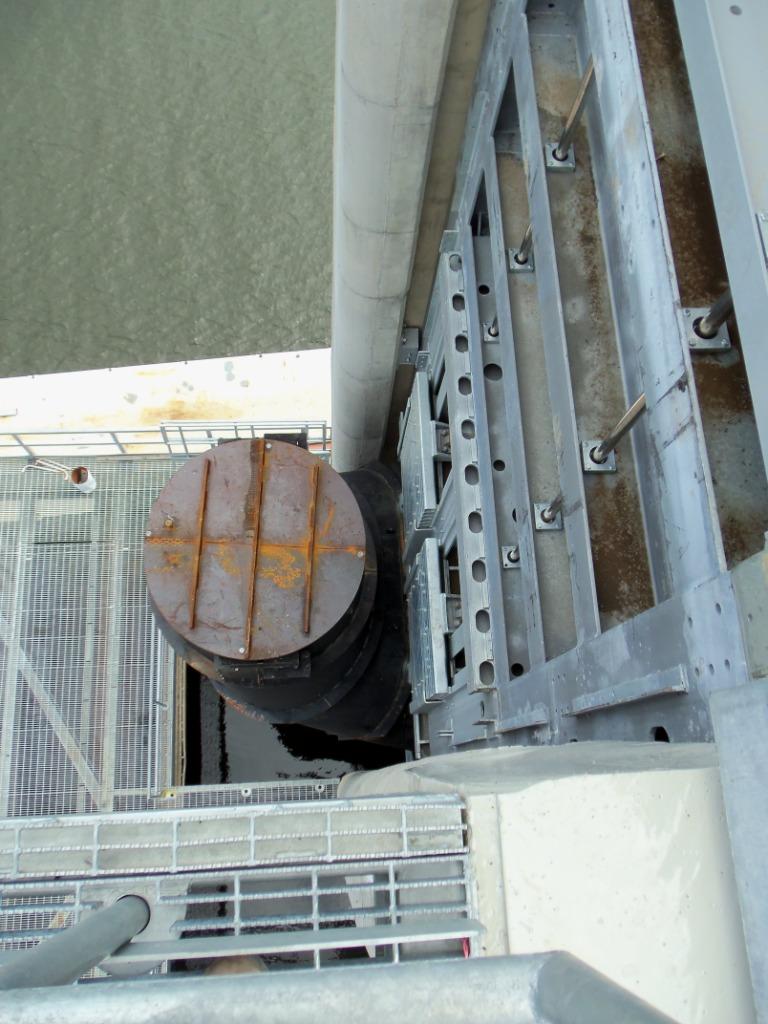

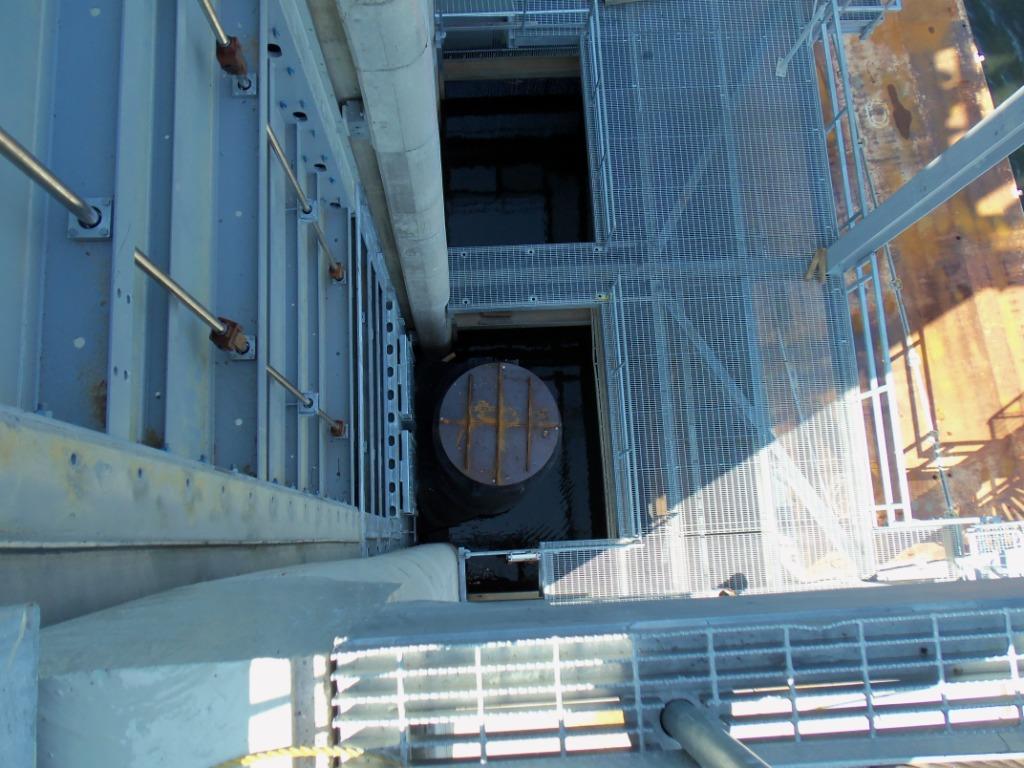

Drafttube temporary cover plate for water seal test

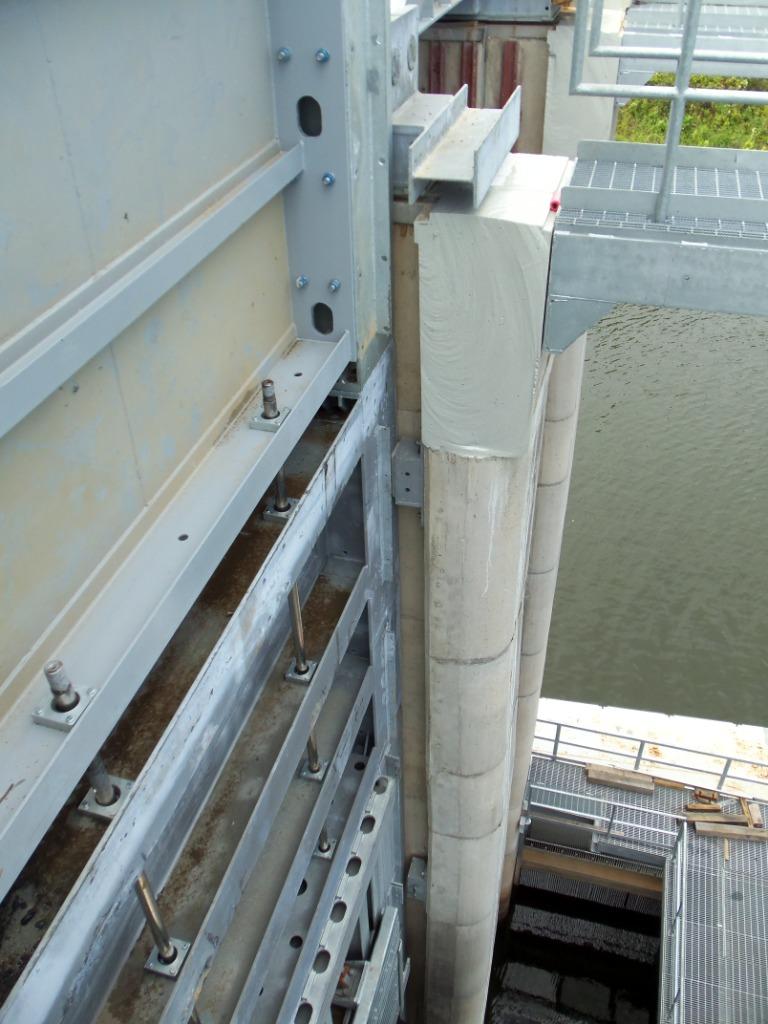

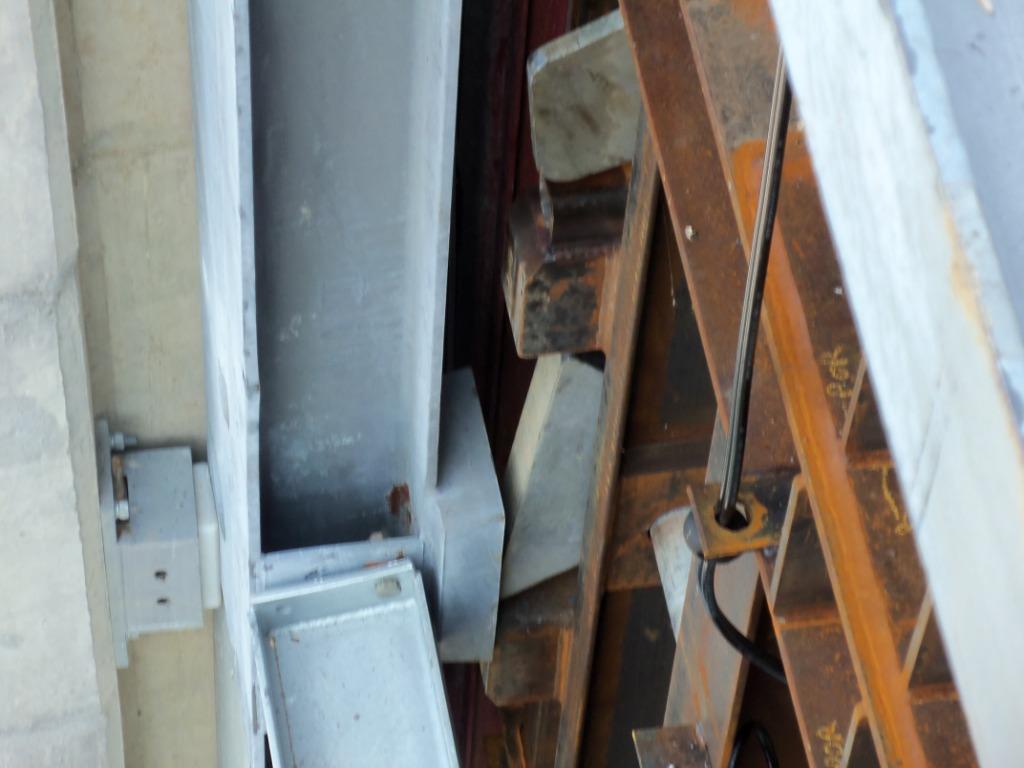

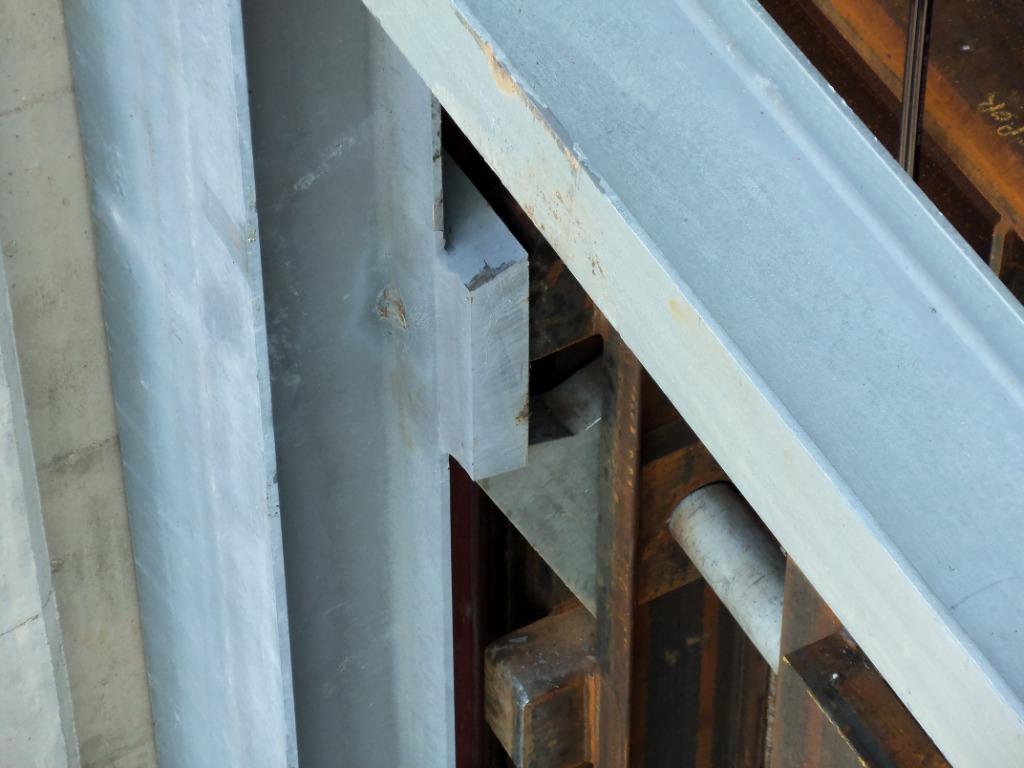

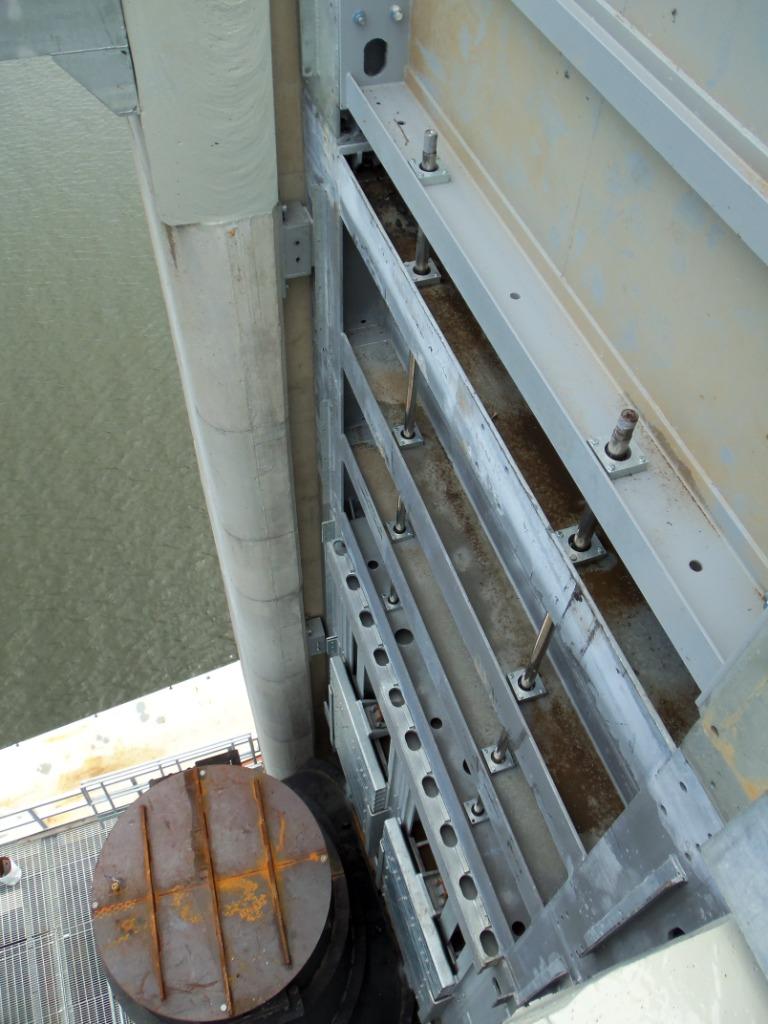

Upstream slot-face shimable slide blocks

UHMW slide block inside housing

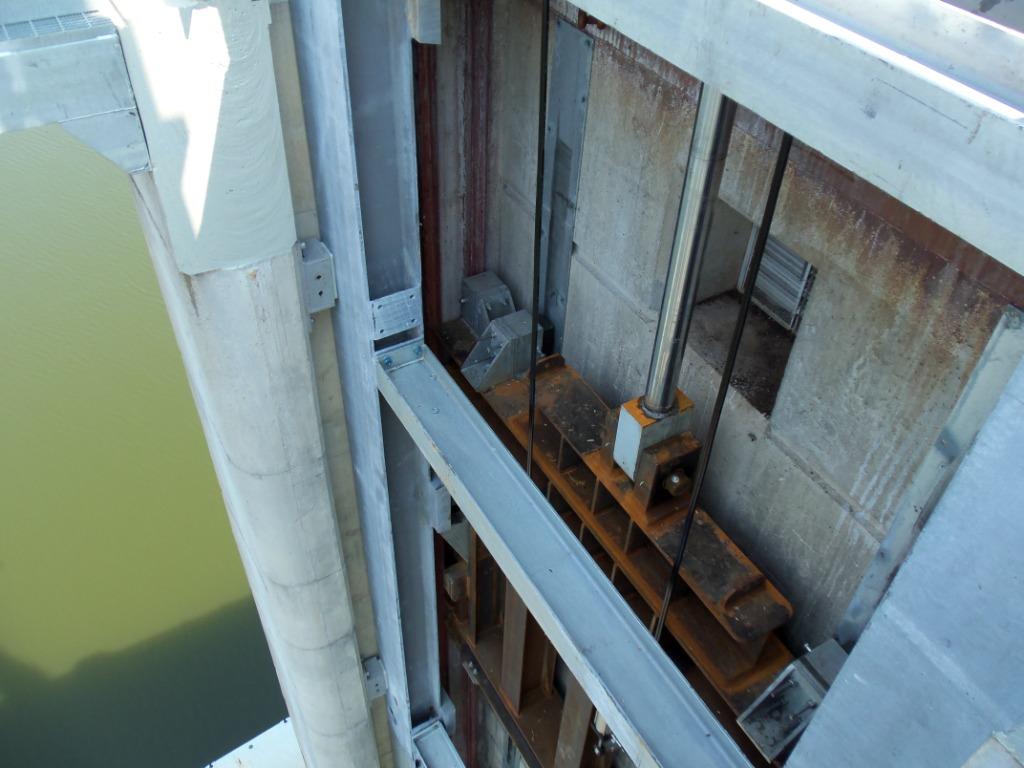

Top of lift carriage / lift cylinder rod connection / air hoses from hose reels to cam cylinders



20 feet tall intake section - weight = 13,300 pounds

Intake section, carriage engagement

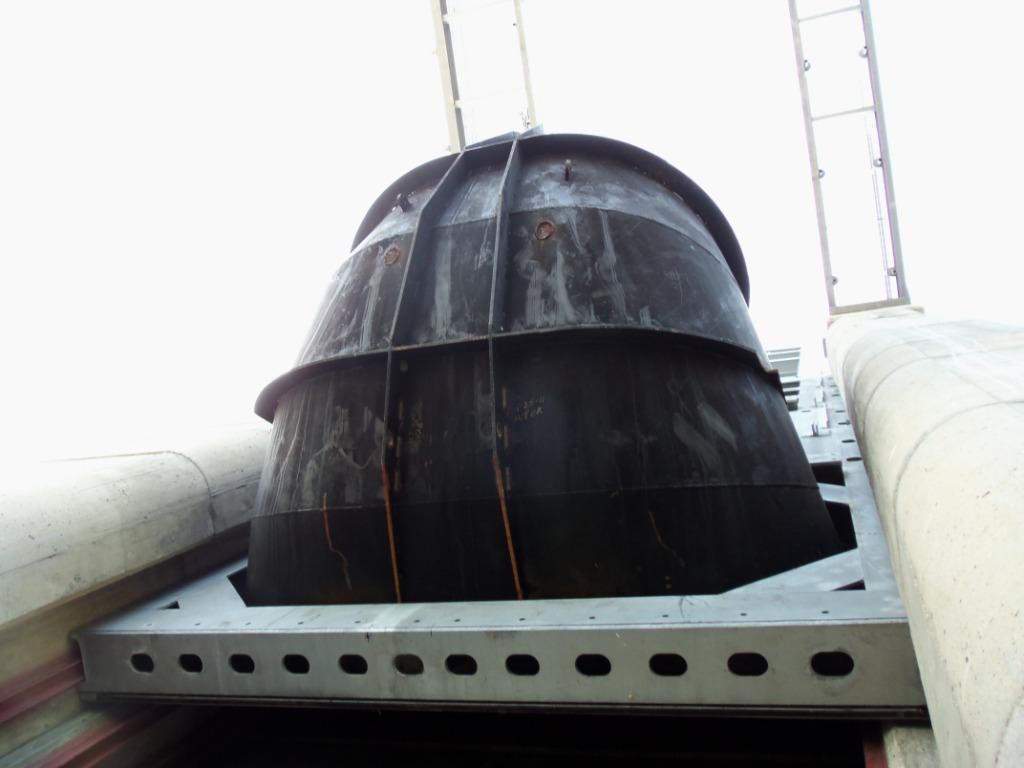

Drafttube lowered 20 feet into water

From bottom to top:

Headgate section, flume section, intake section

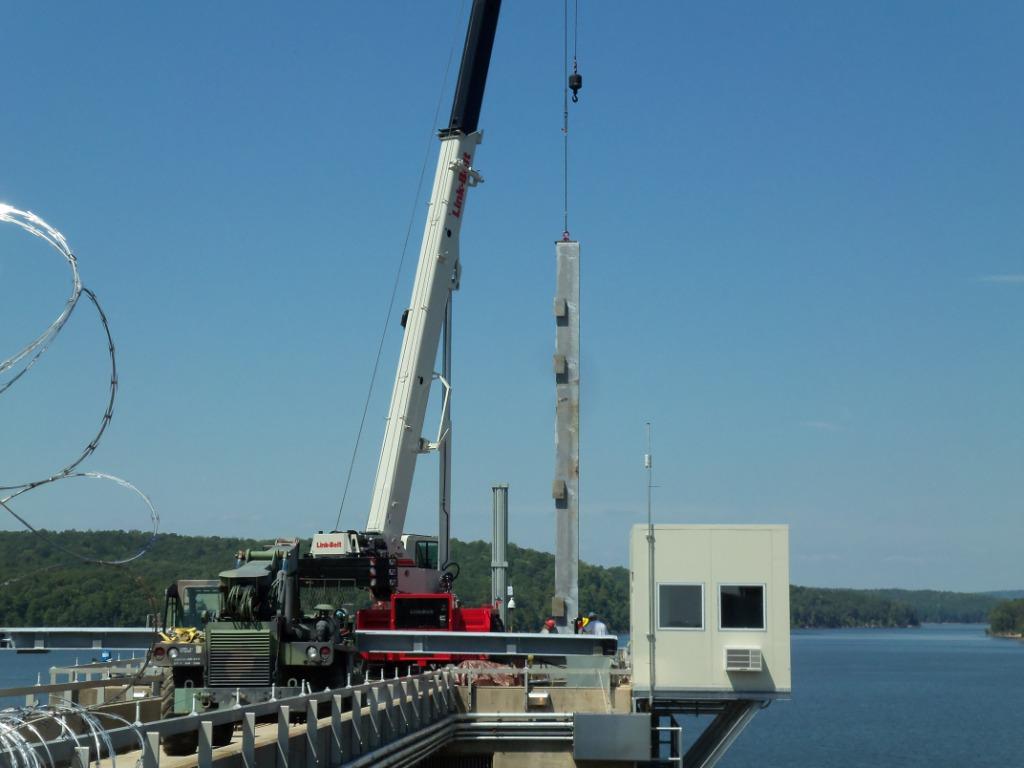

35 feet tall generator section columns

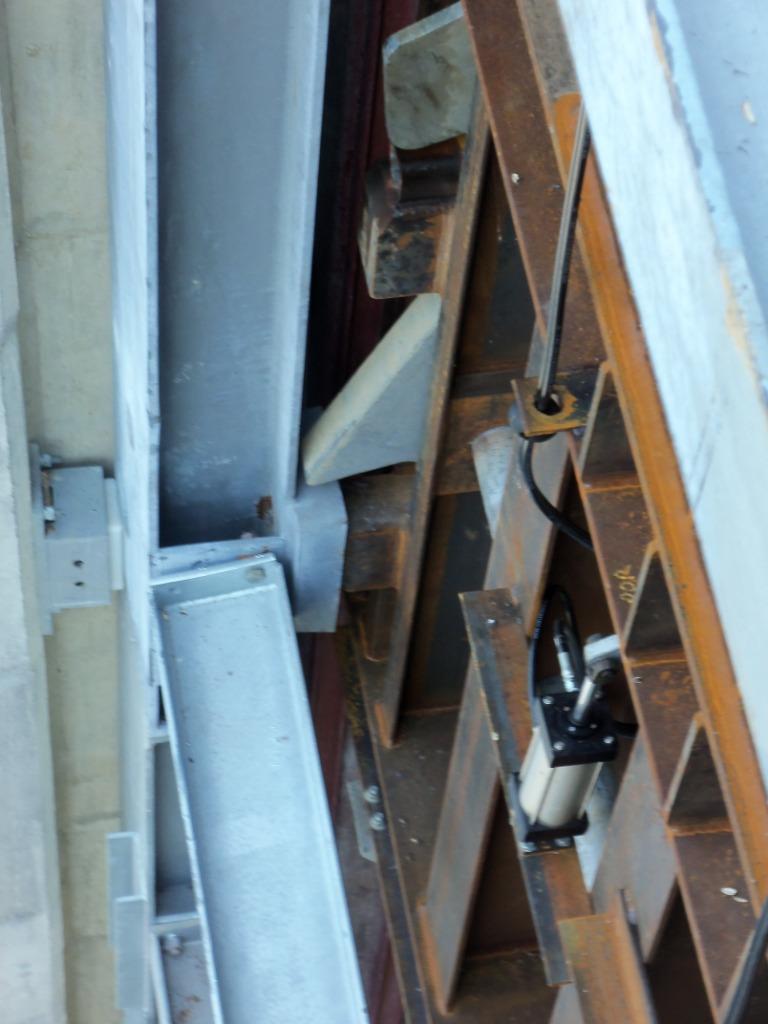

Lower lift cam engaging a lift block to lift module





Lower lift cam passing by lift block to engage a higher lift block

Lower lift cam rotated to engage the top of a lift block
