JORDAN HYDROELECTRIC PLANT INSTALLATION WORK WEEK OF 10/10, 2011 |
| 2 UNITS 4.5 MW |
----UNDER CONSTRUCTION----
2- MODULAR KAPLAN TURBINE GENERATOR UNITS
US ARMY CORPS OF ENGINEERS' DAM
---JORDAN DAM INSTALLATION---
Module 1 East bay slot installation
|
Stayring preparation for inlet pipe |

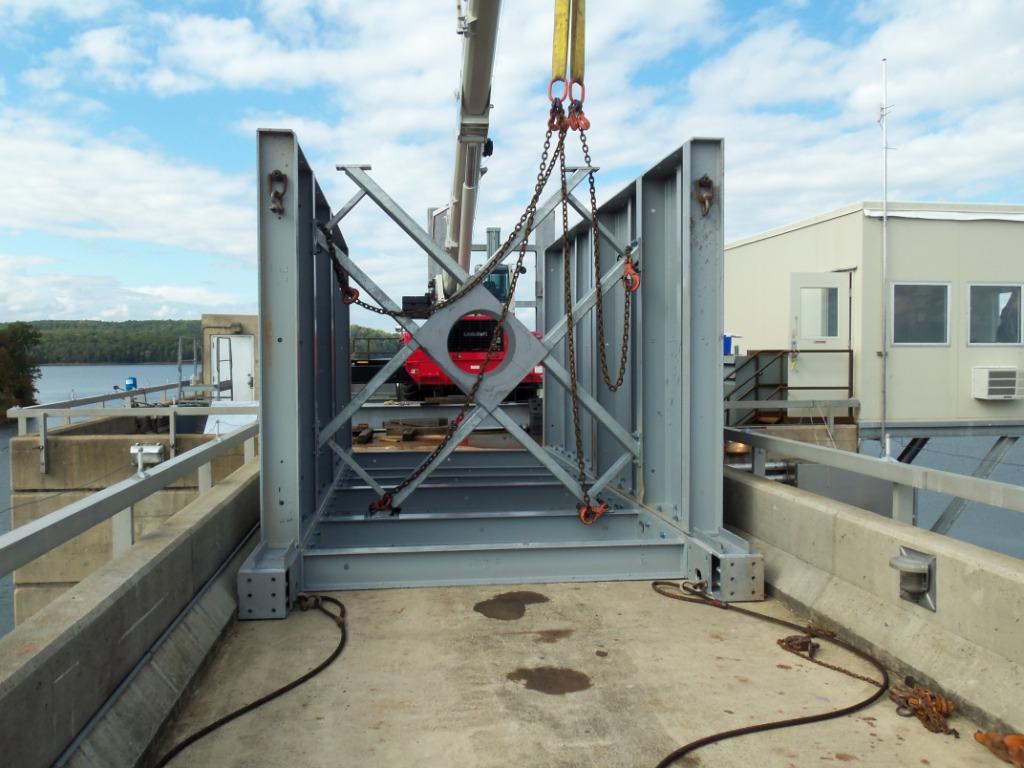

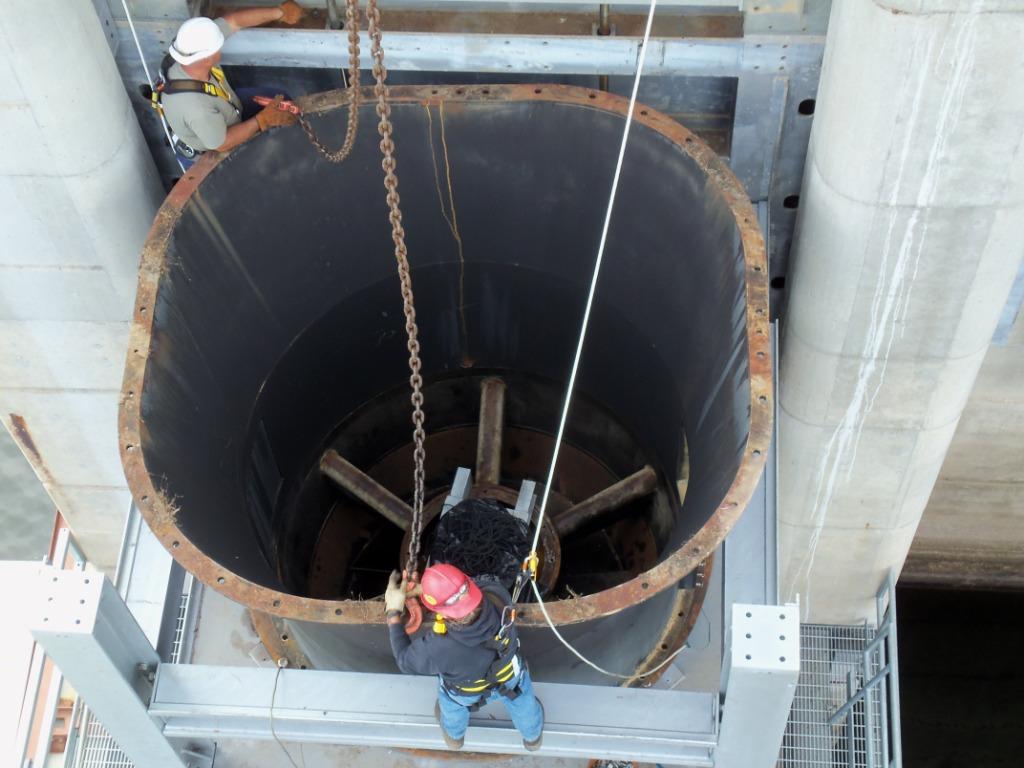

Inlet pipe |

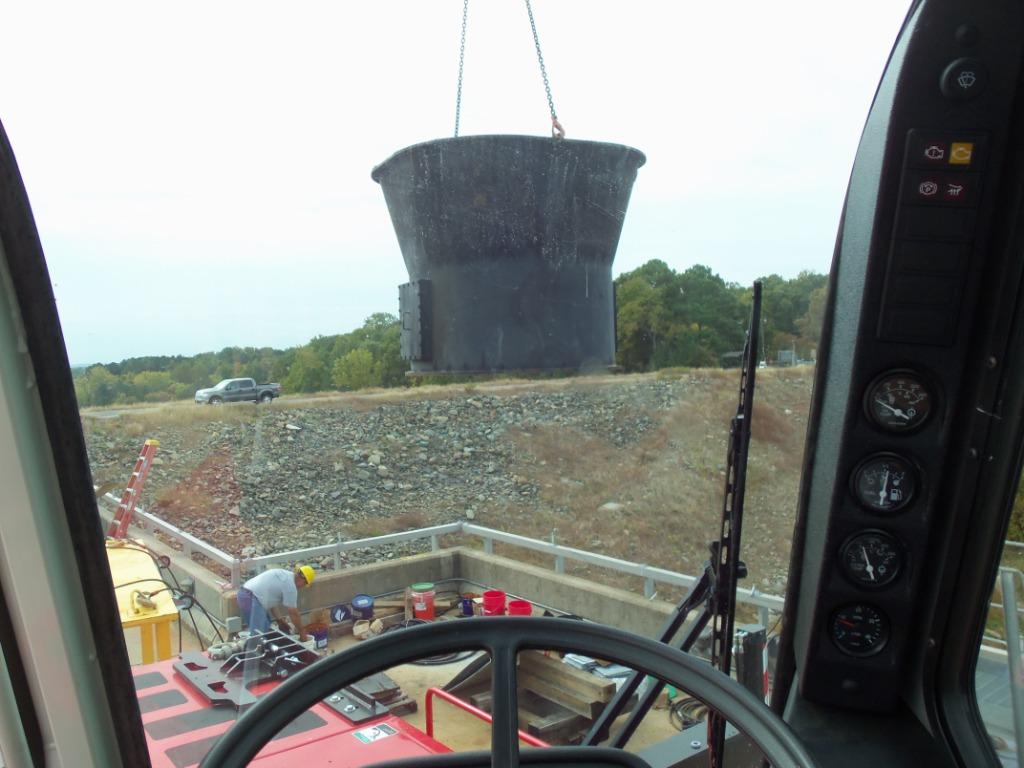

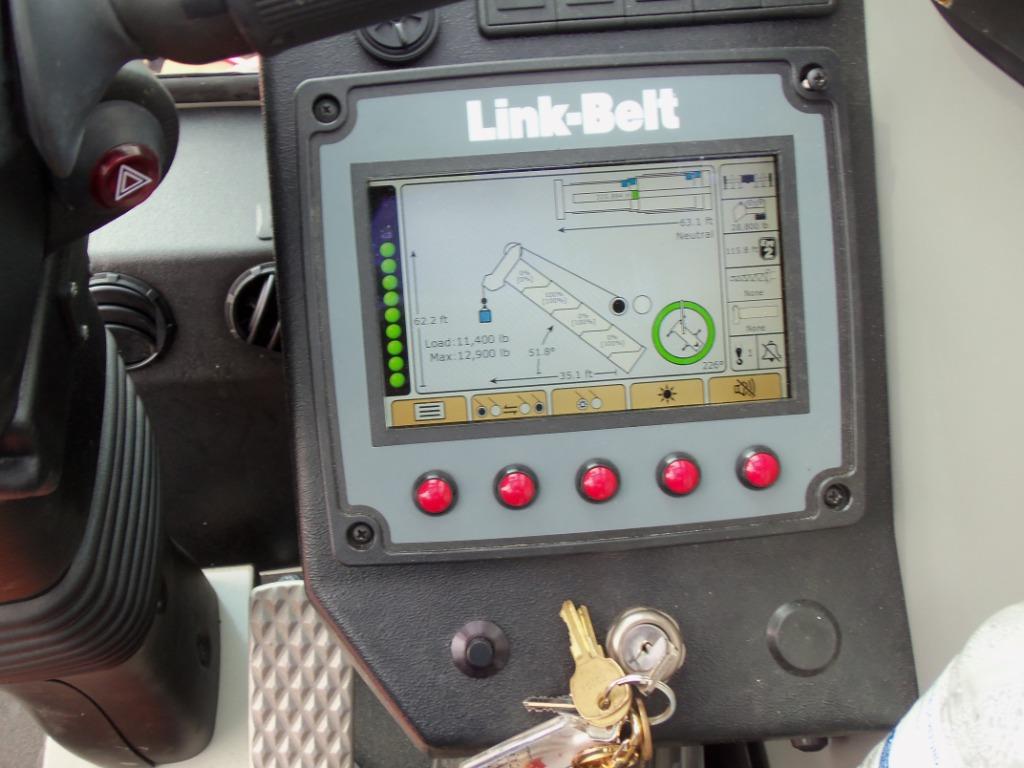

11K pound inlet pipe |
|
Section A |

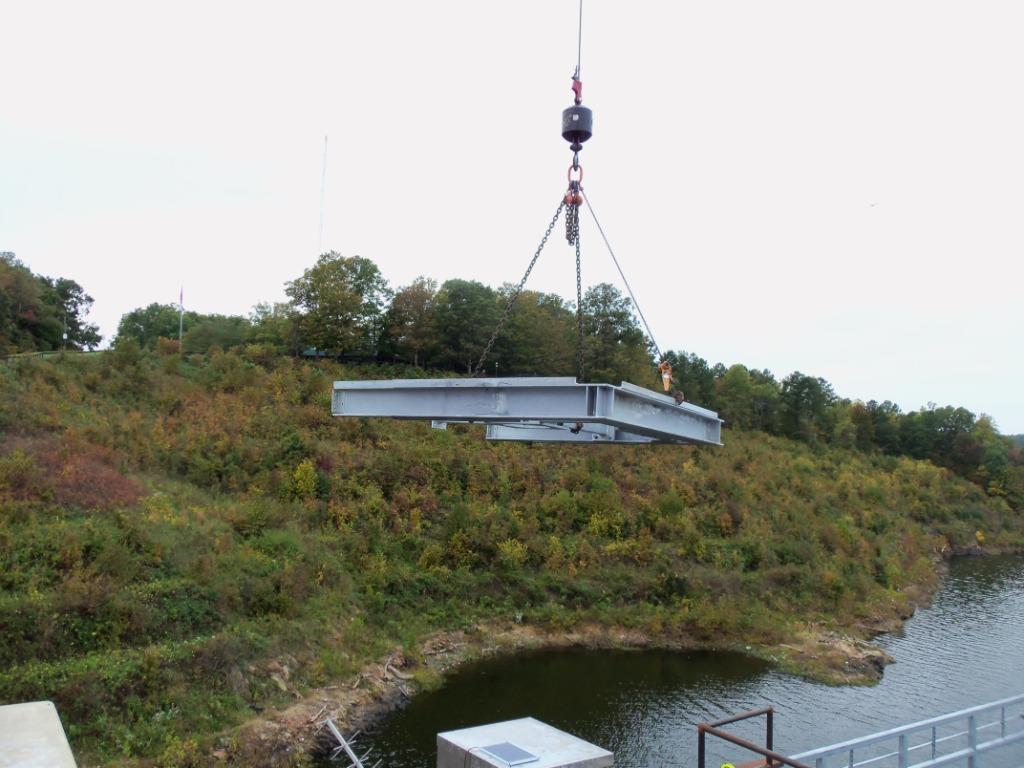

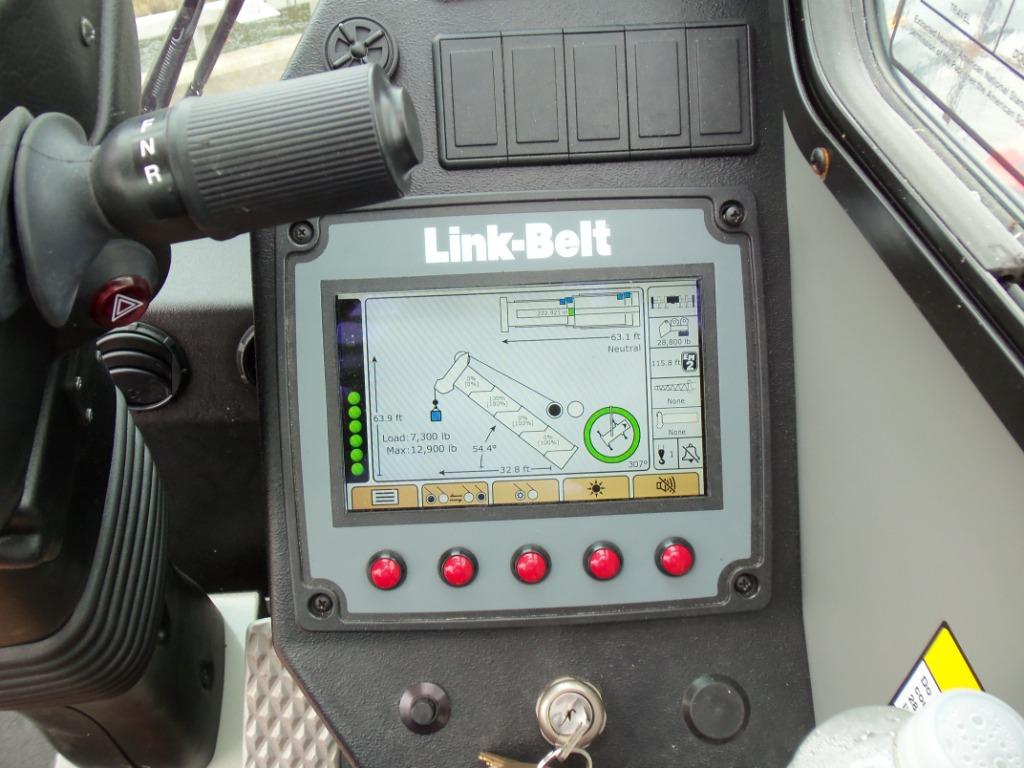

7K pound Section A |
|

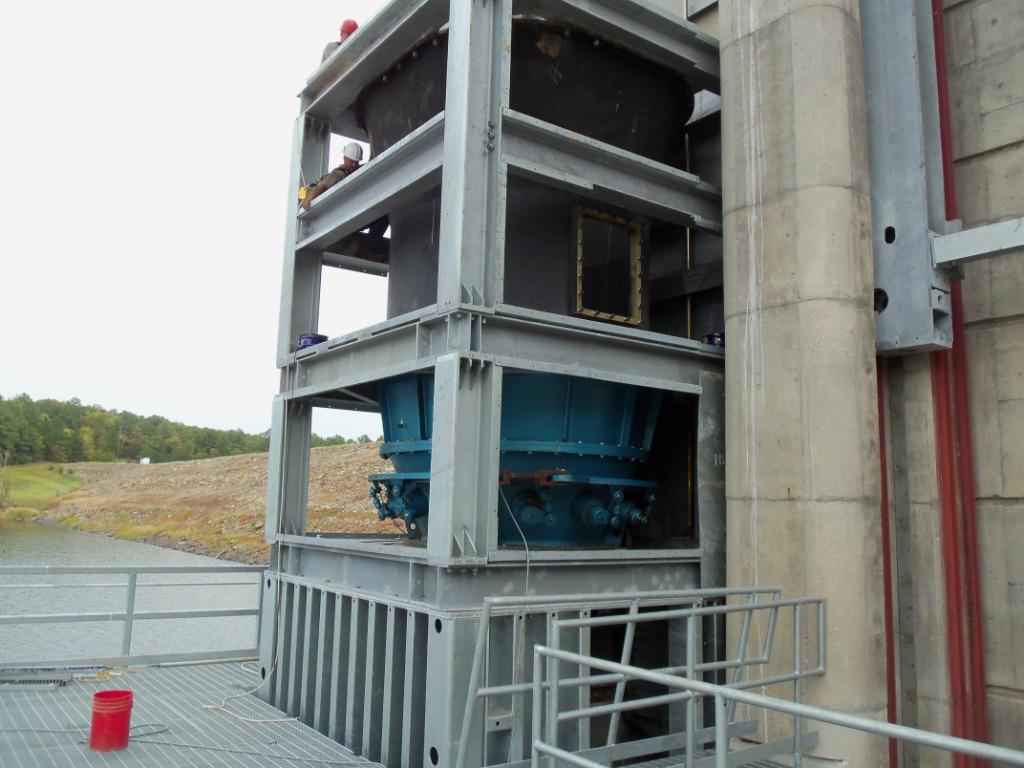

Complete Turbine Section |
|
|

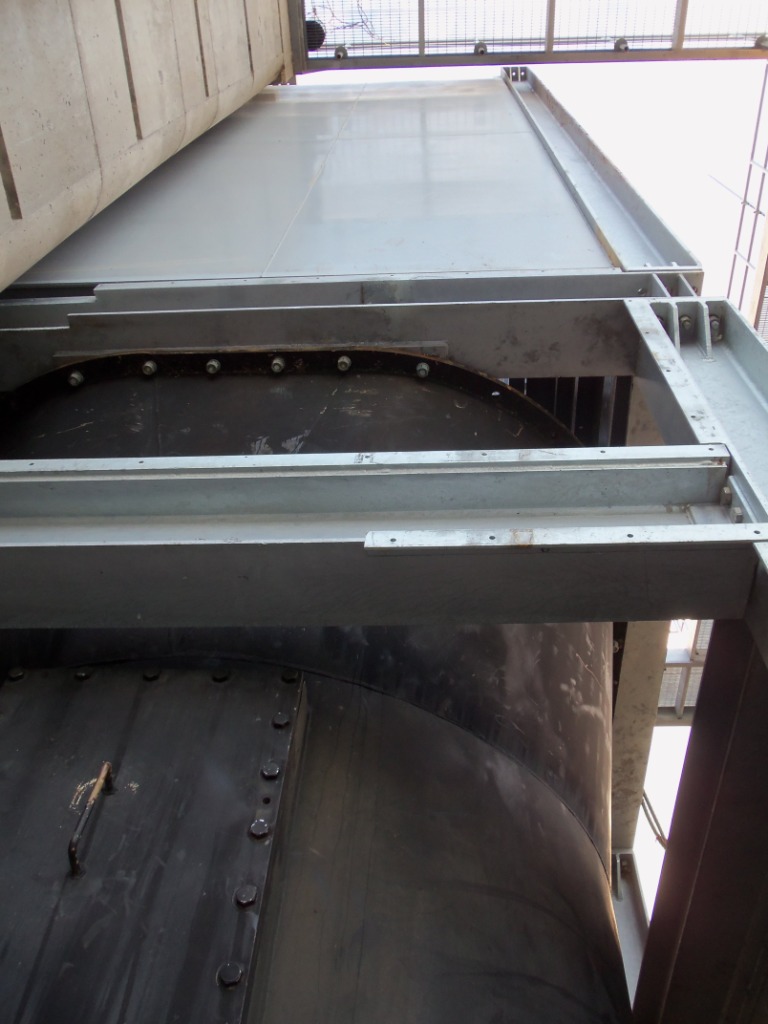

Turbine Section plating |
|

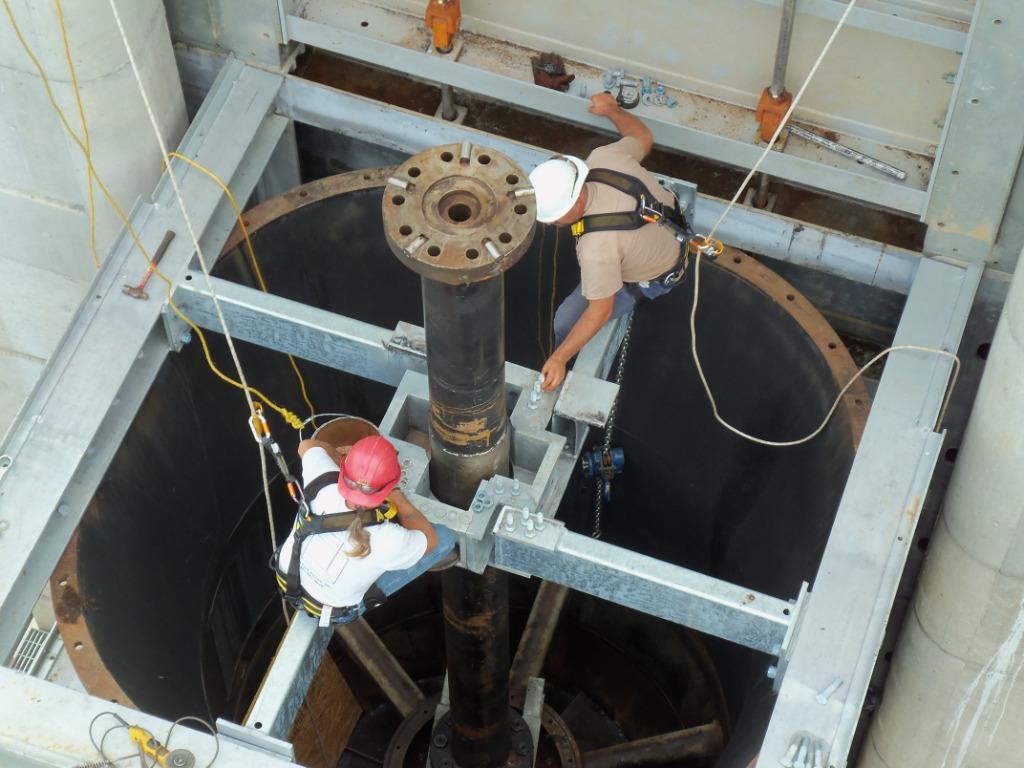

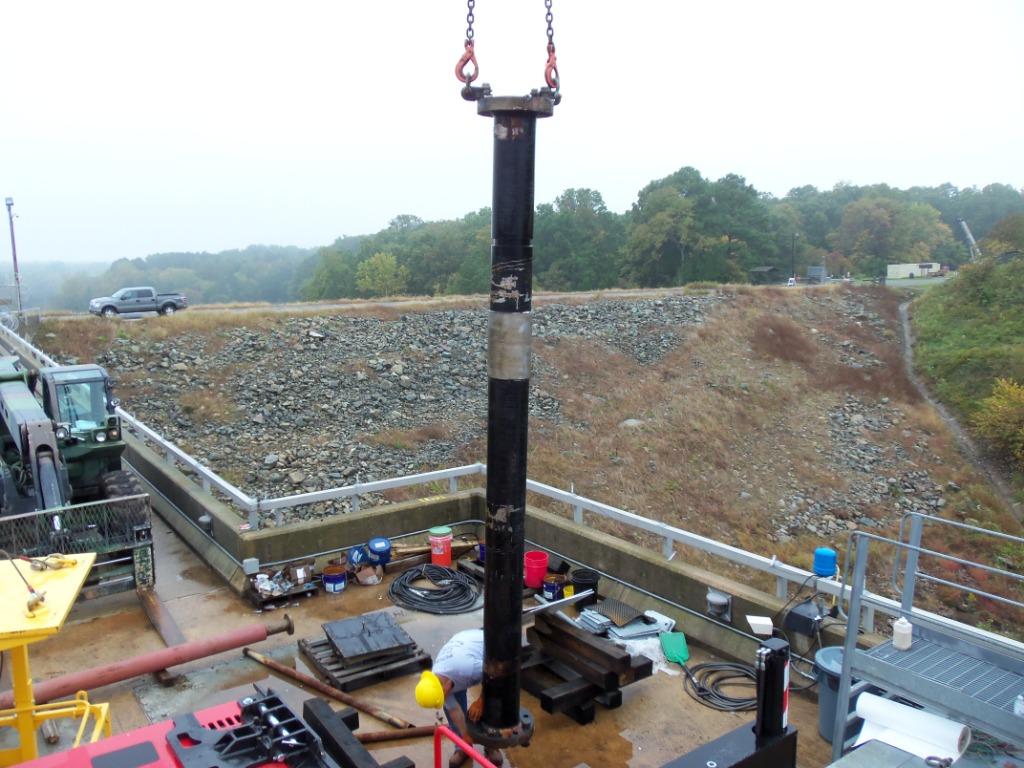

Lower mid-shaft |
Lower mid-shaft bearing spider |

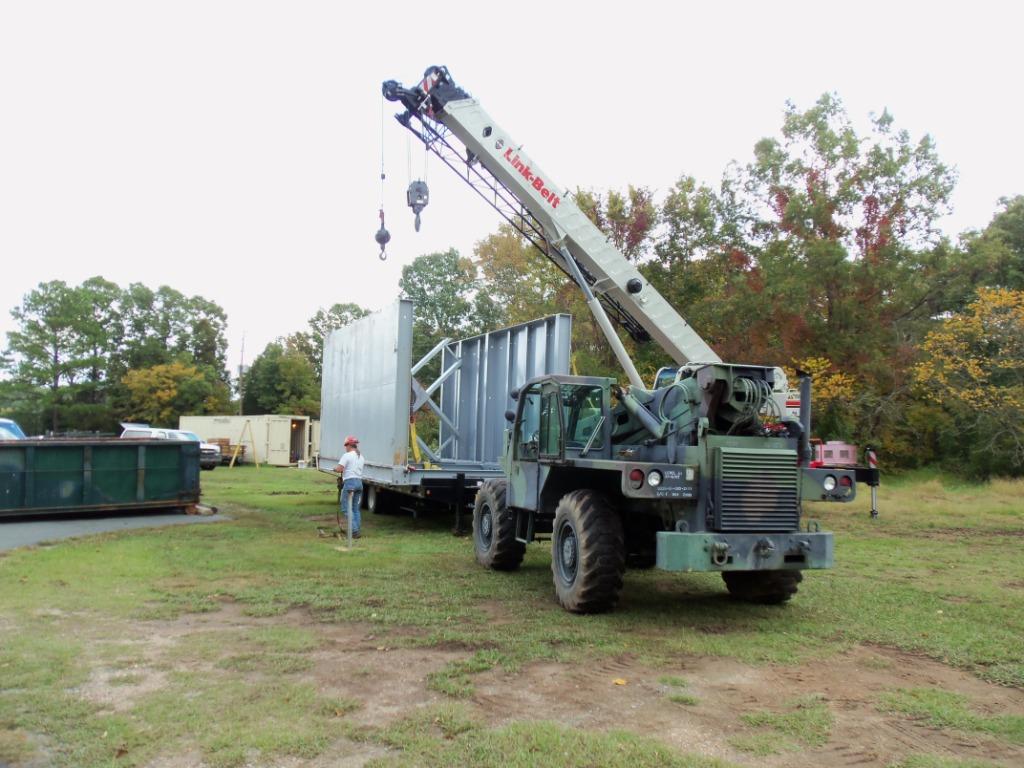

Flume Section loaded on equipment trailer |
|
|

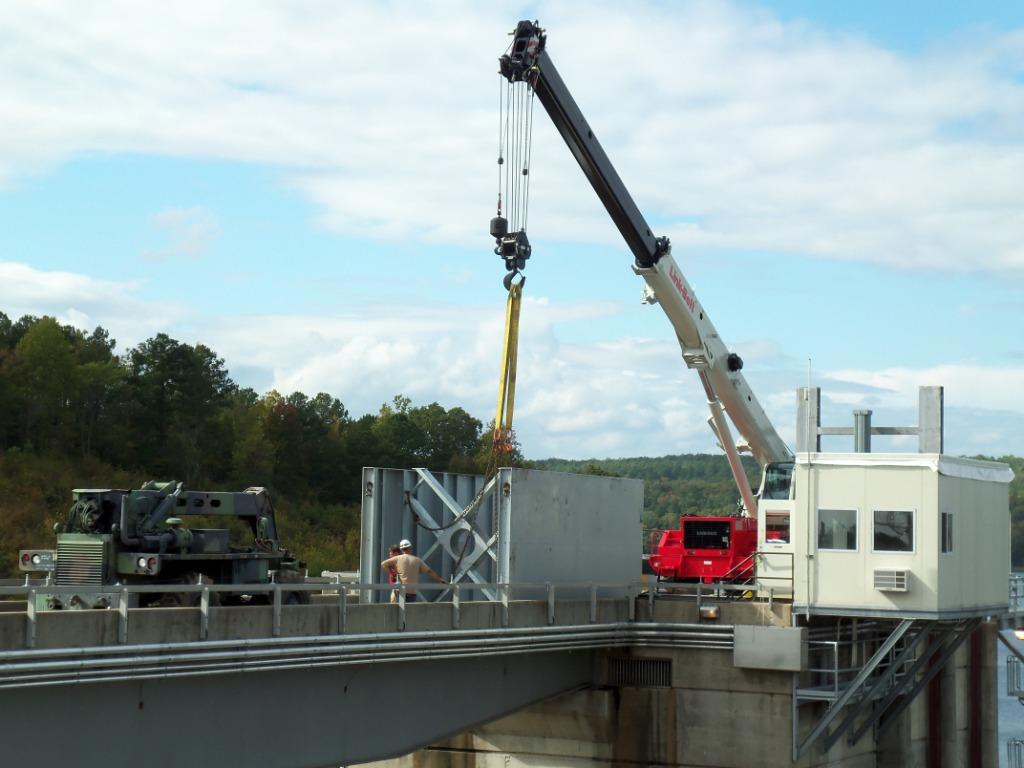

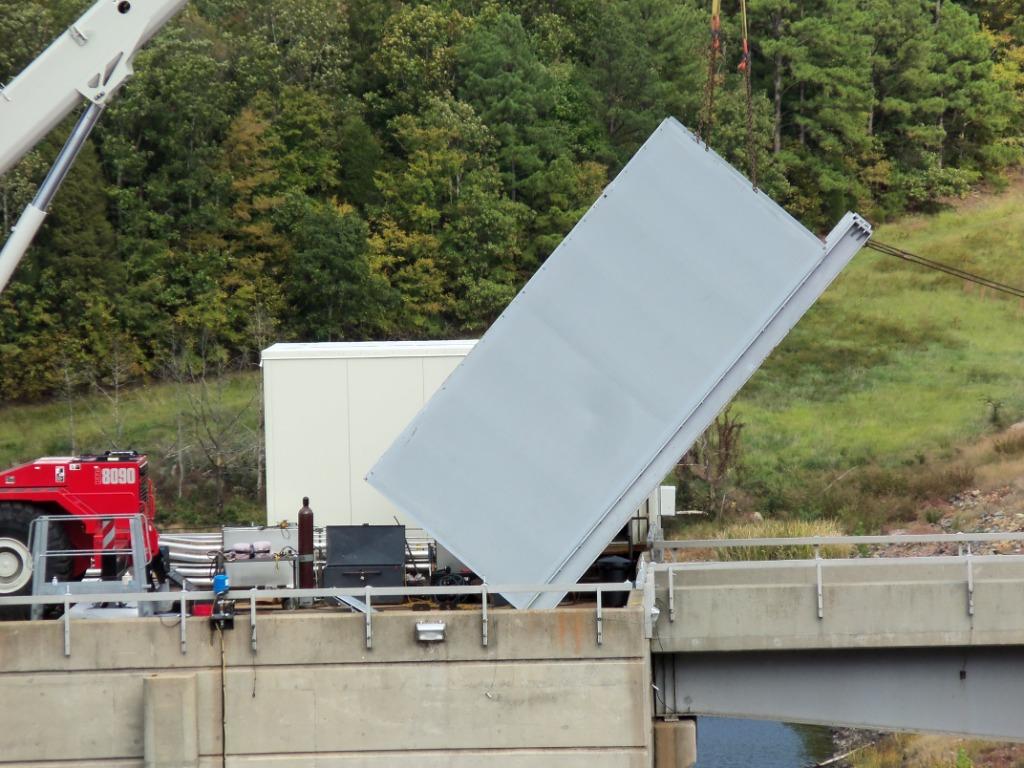

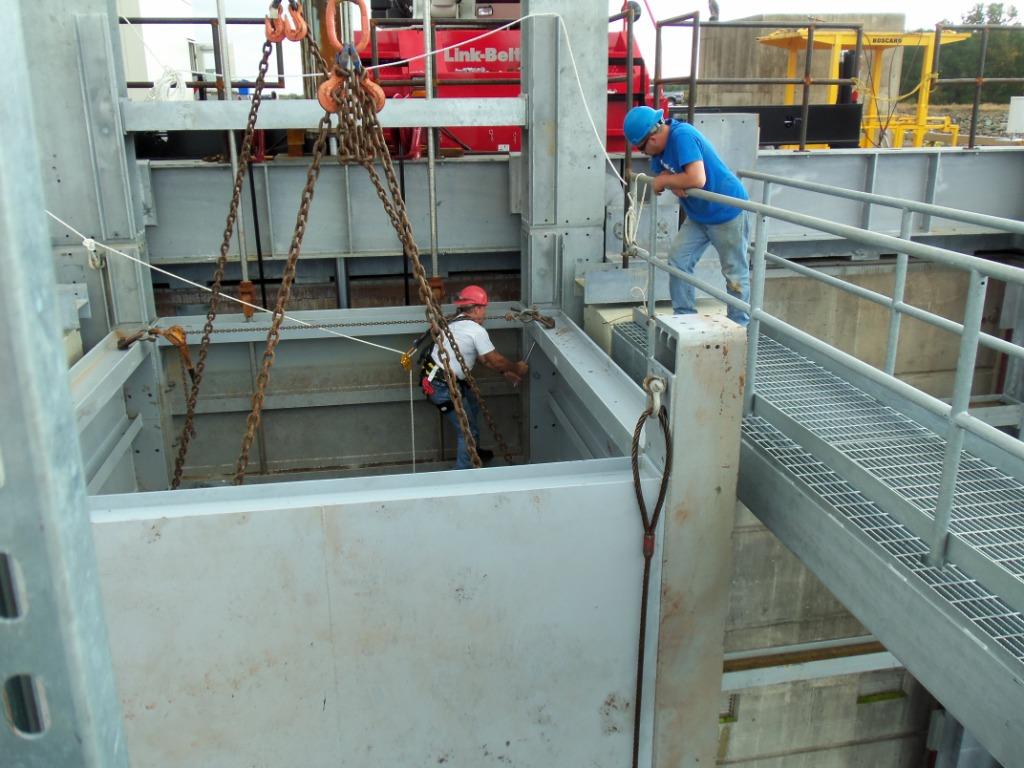

Upending flume section on tower roof |

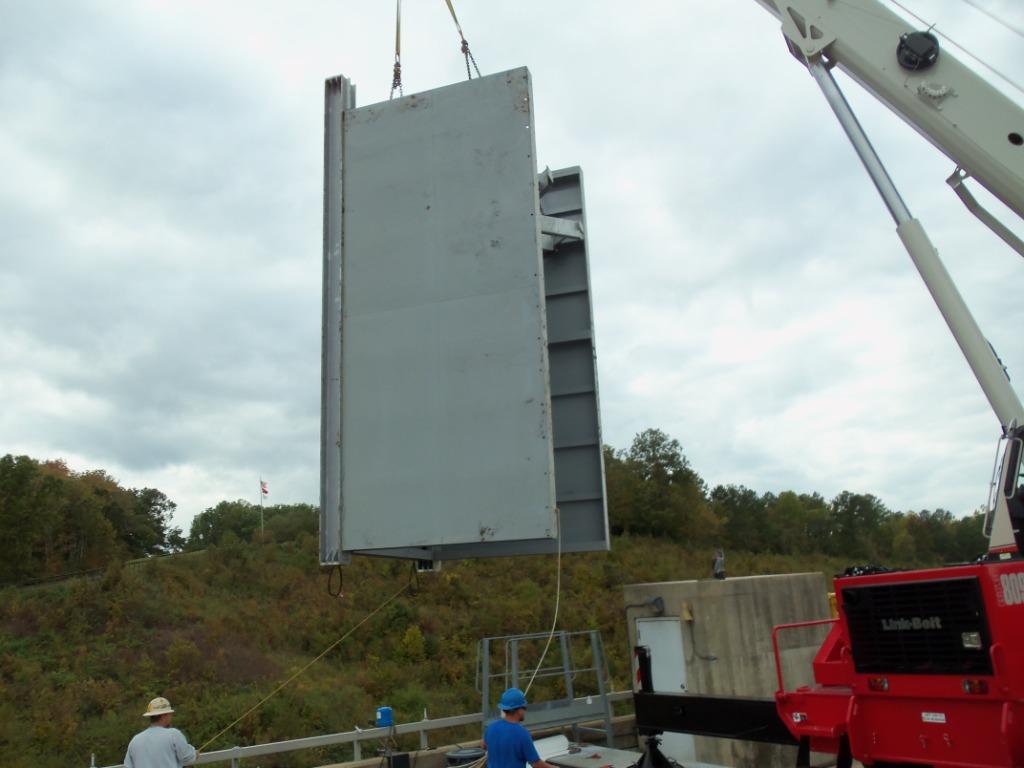

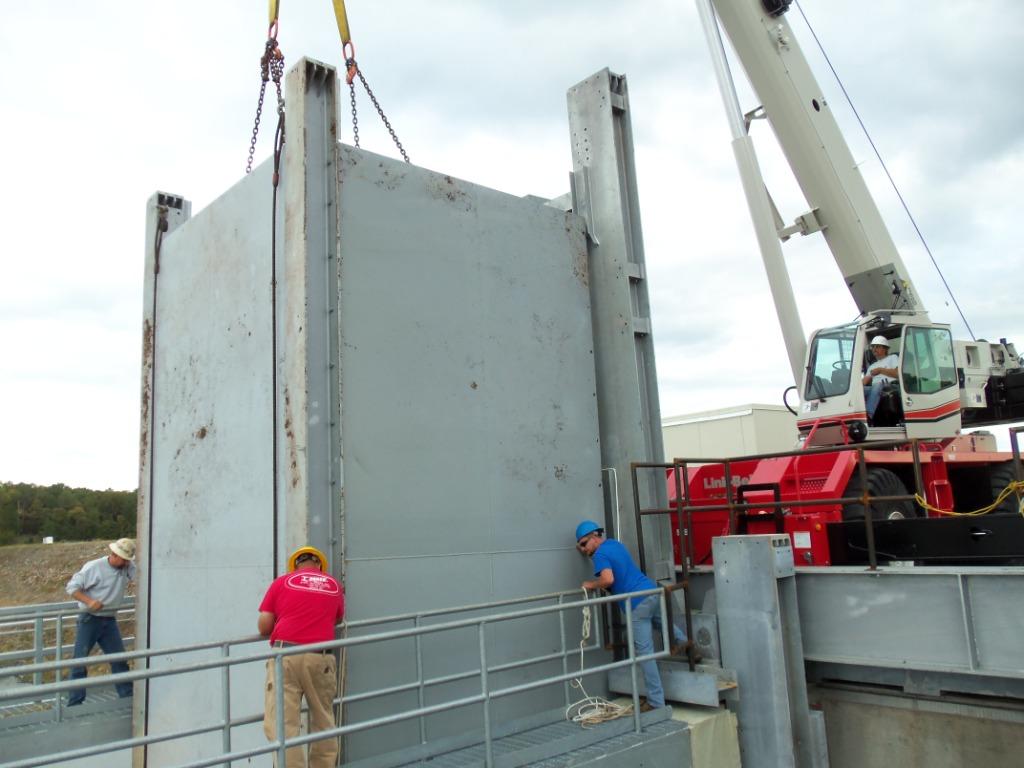

 Flume Section - 38K pounds |
|
|
|
|

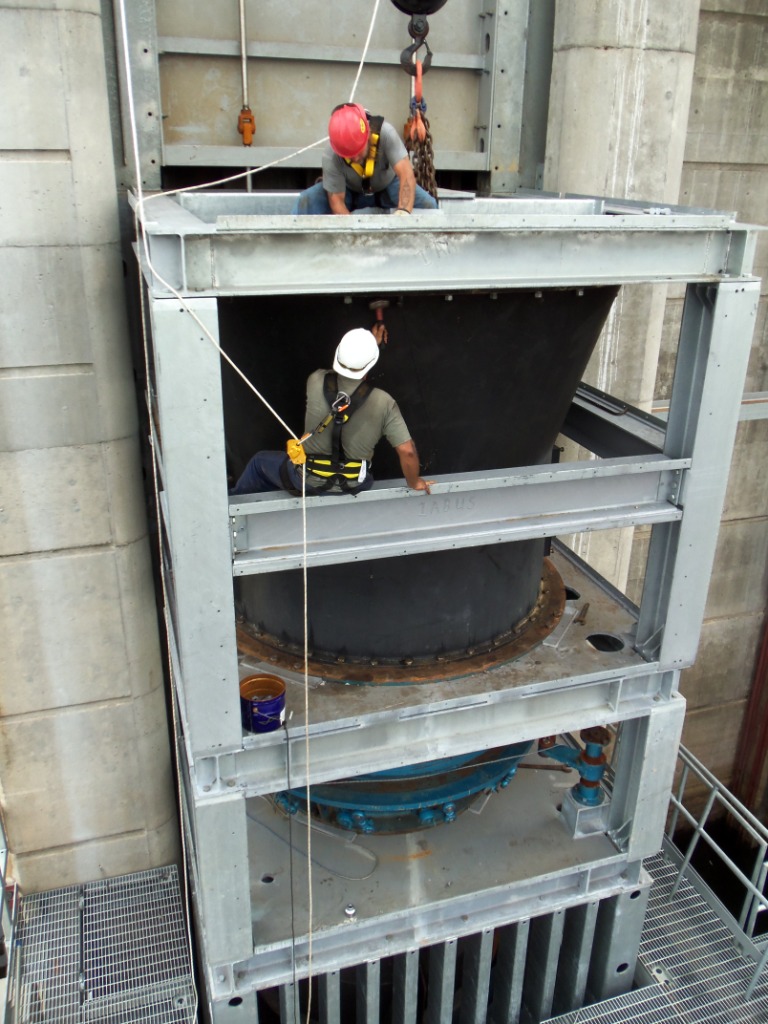

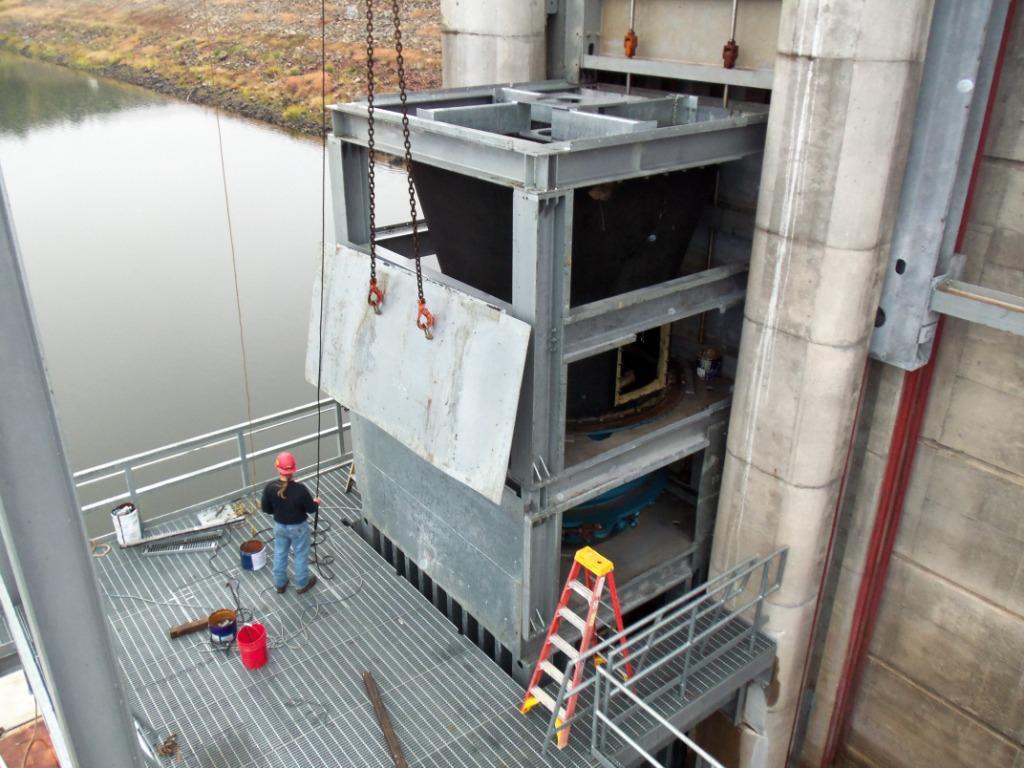

Flume Section side view above Turbine Section
|
