LOCKHART POWER / CITY OF COLUMBIA SC
COLUMBIA CANAL HYDRO PLANT
7 UNITS

10MW

>>HOME<<

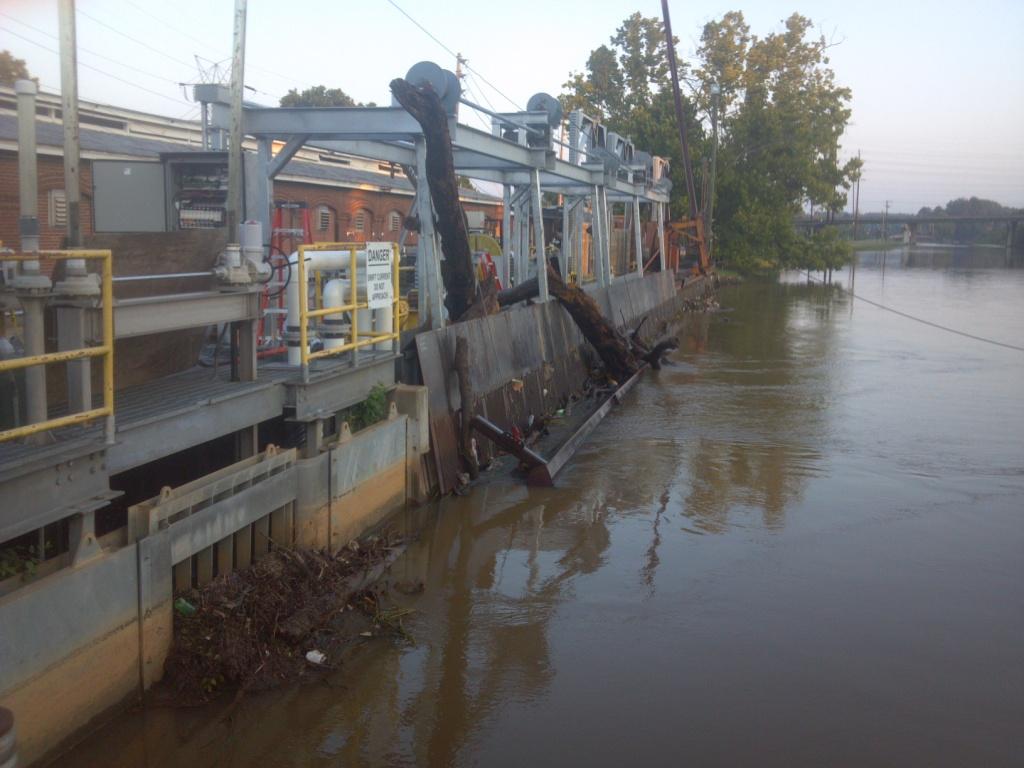

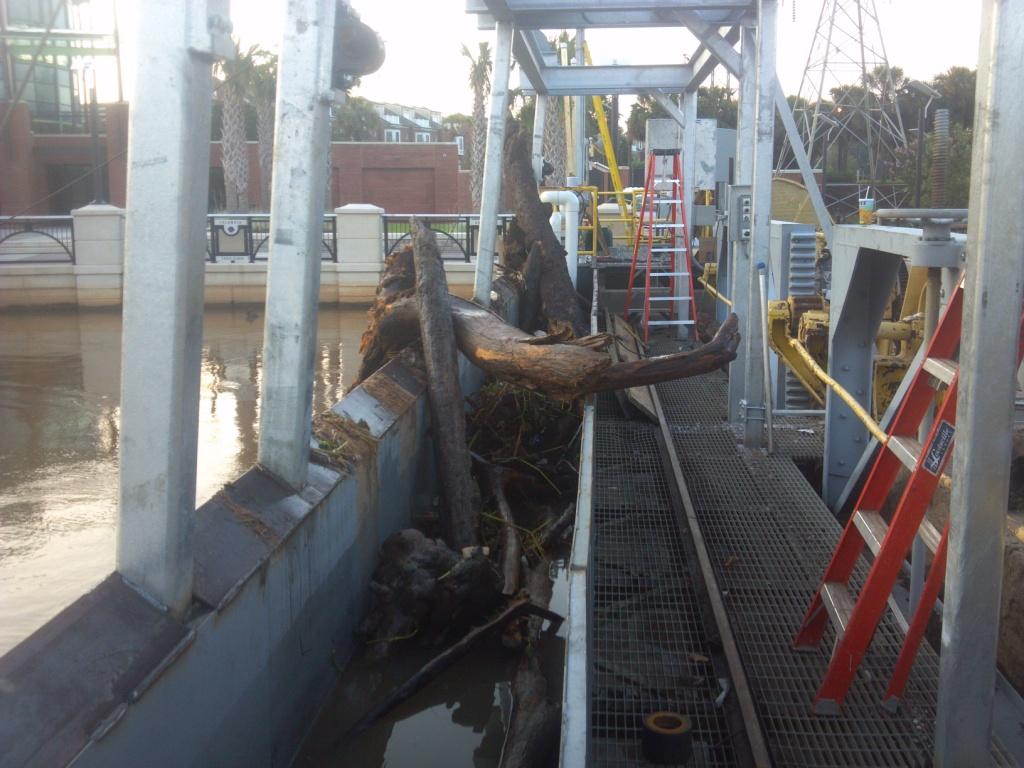

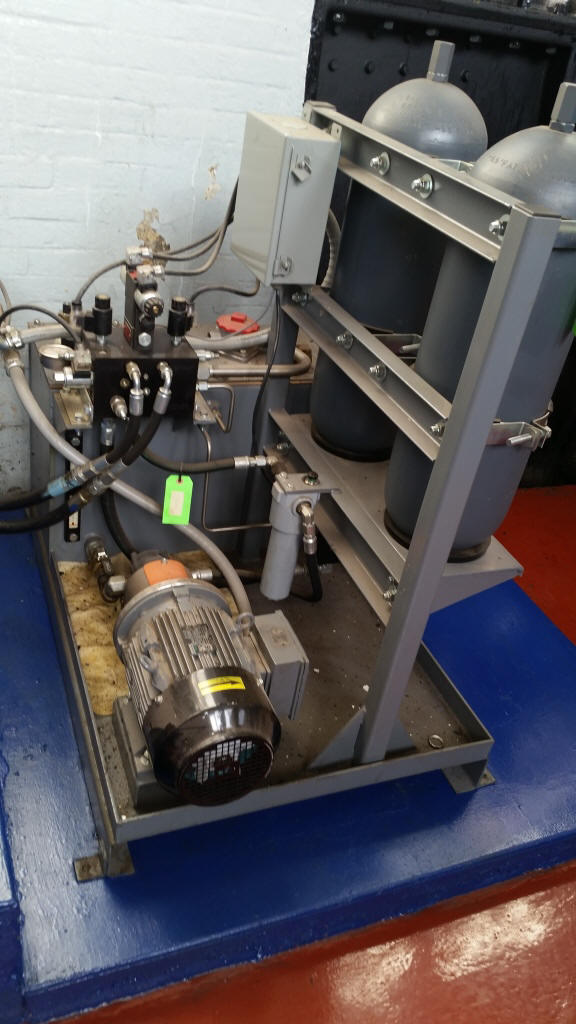

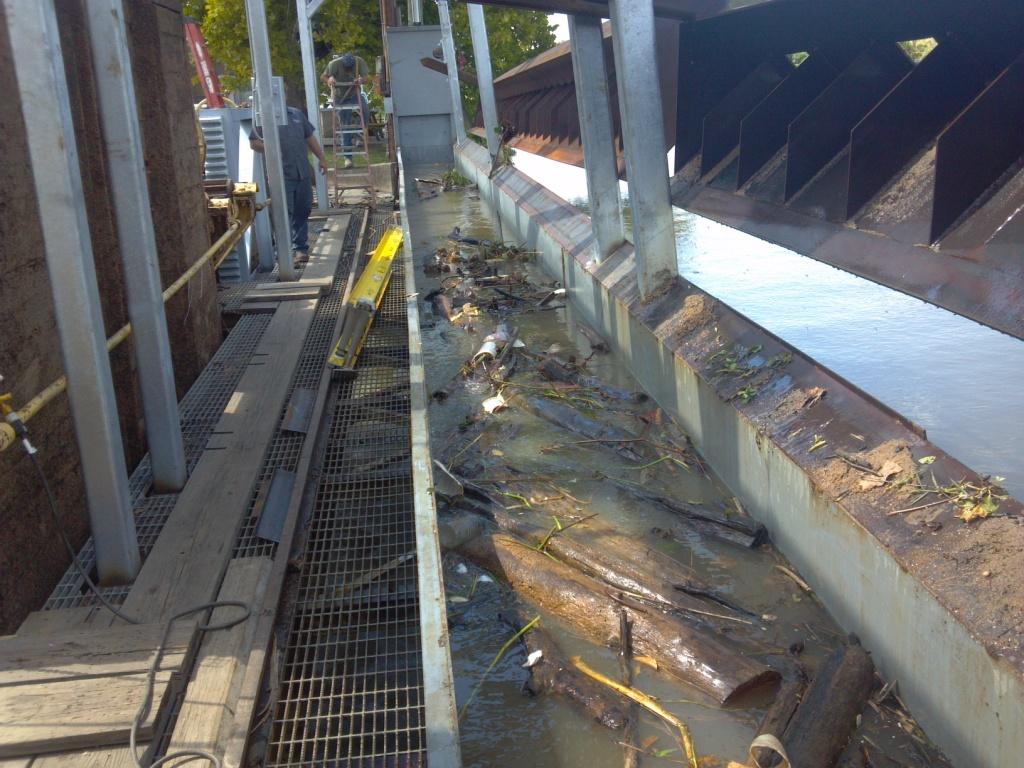

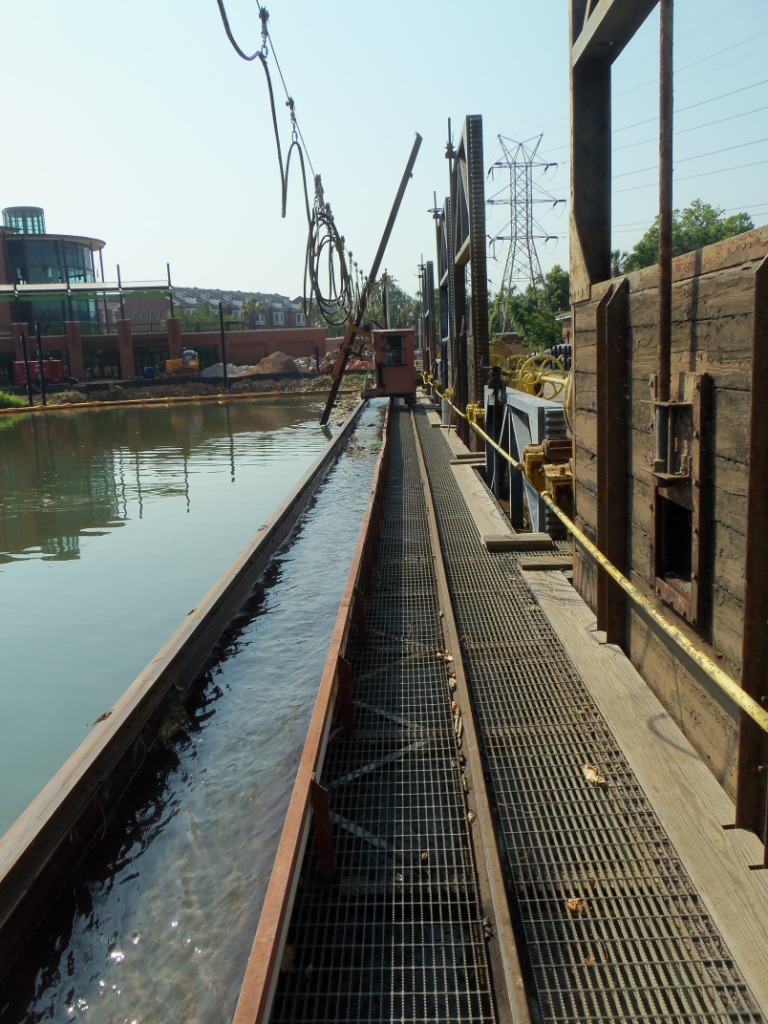

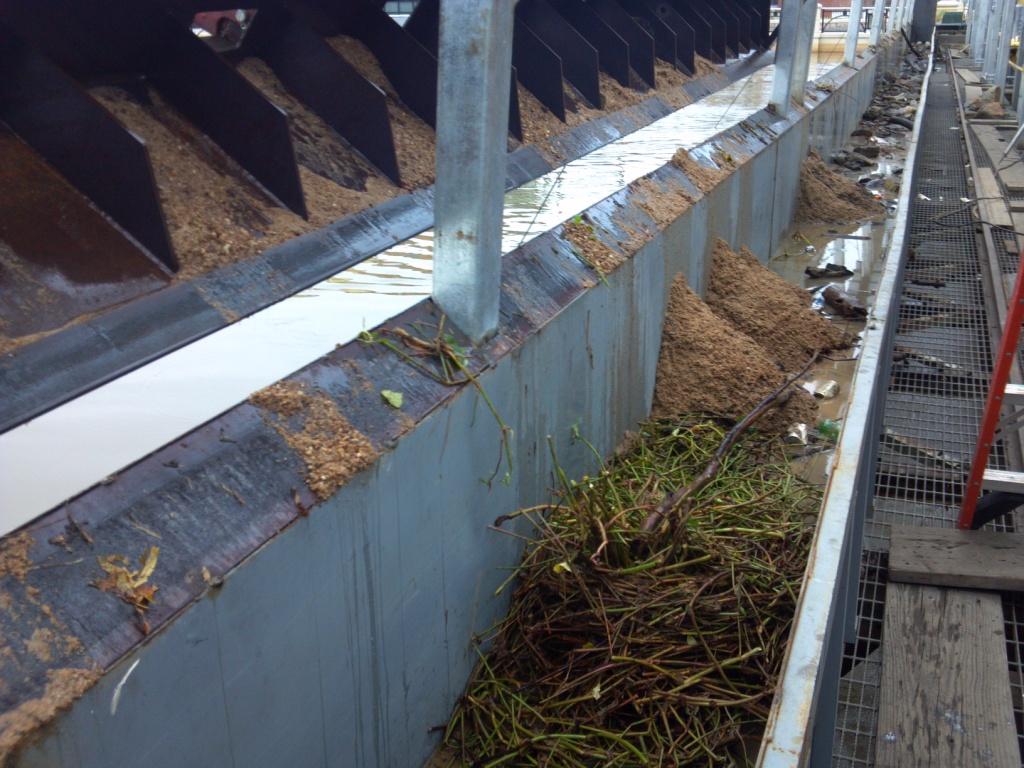

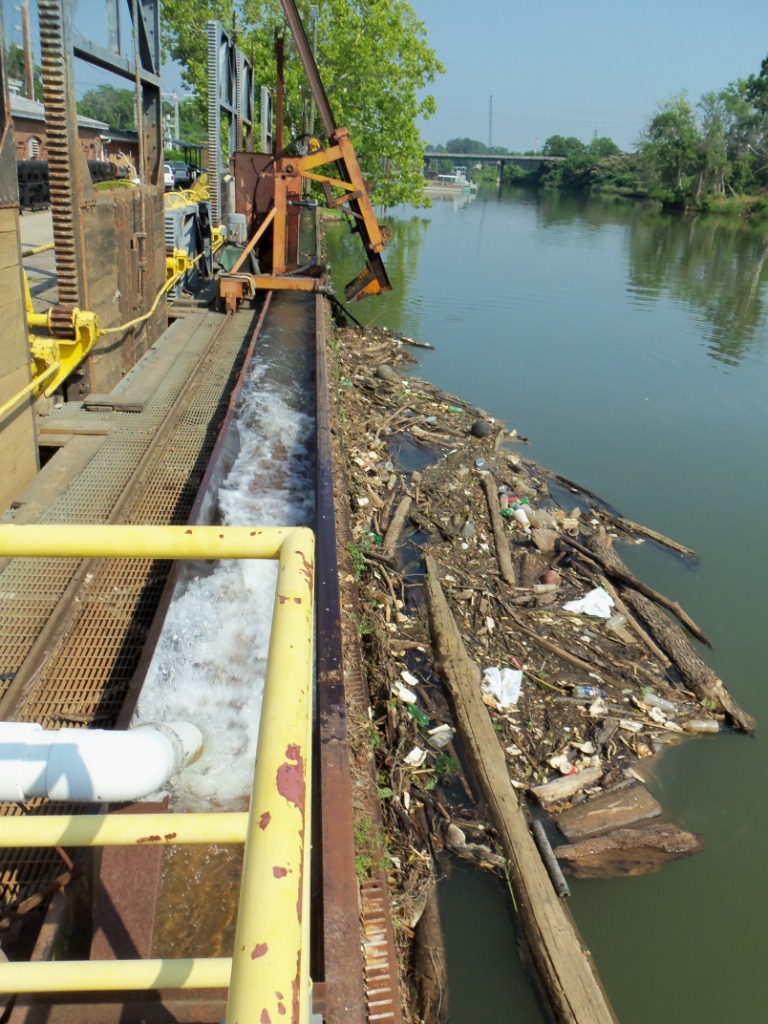

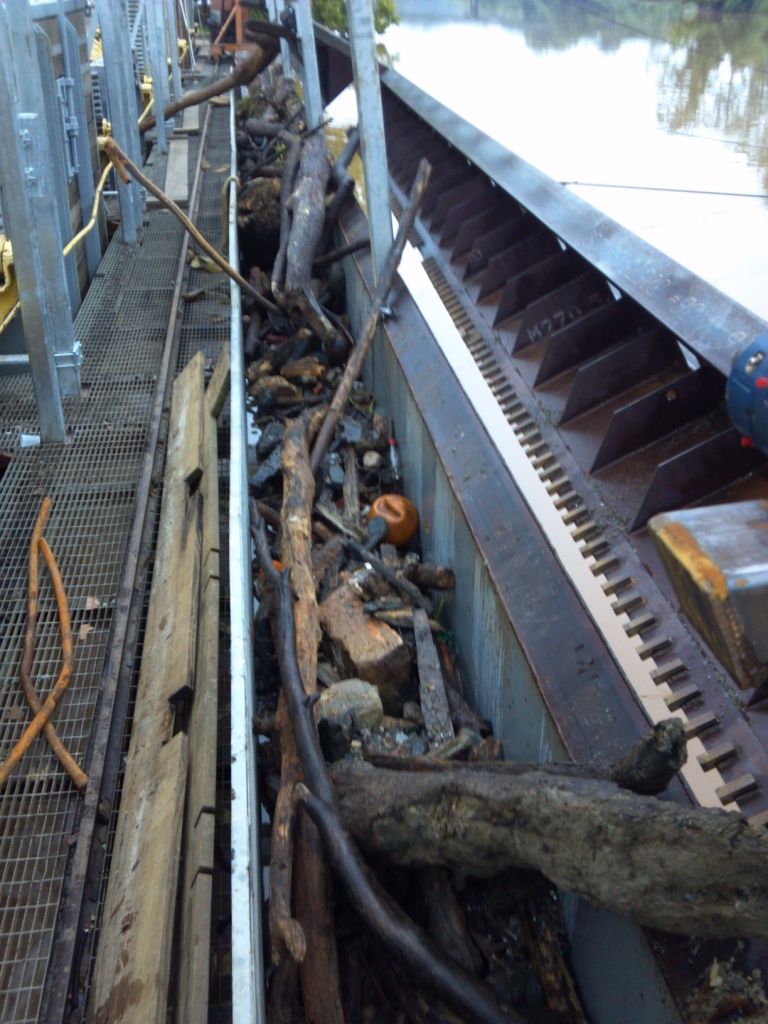

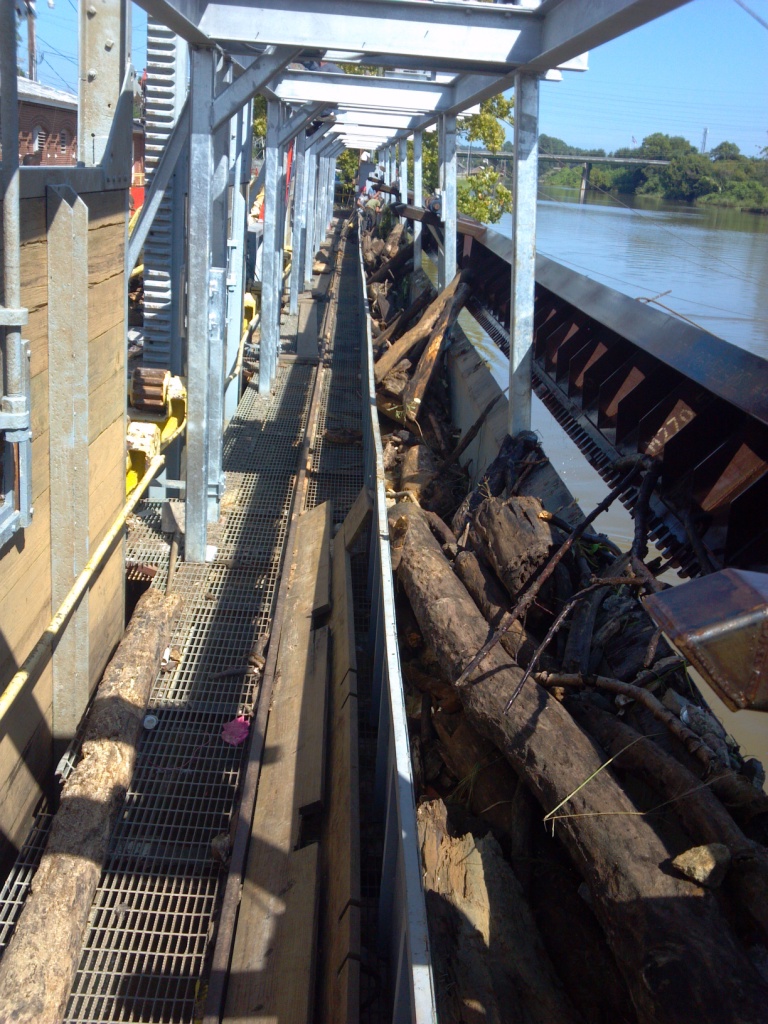

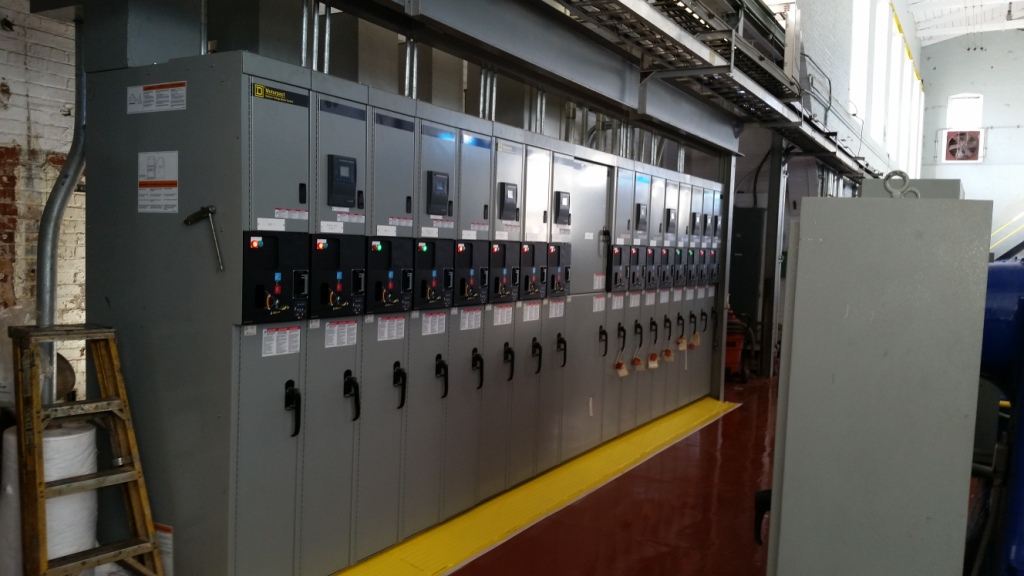

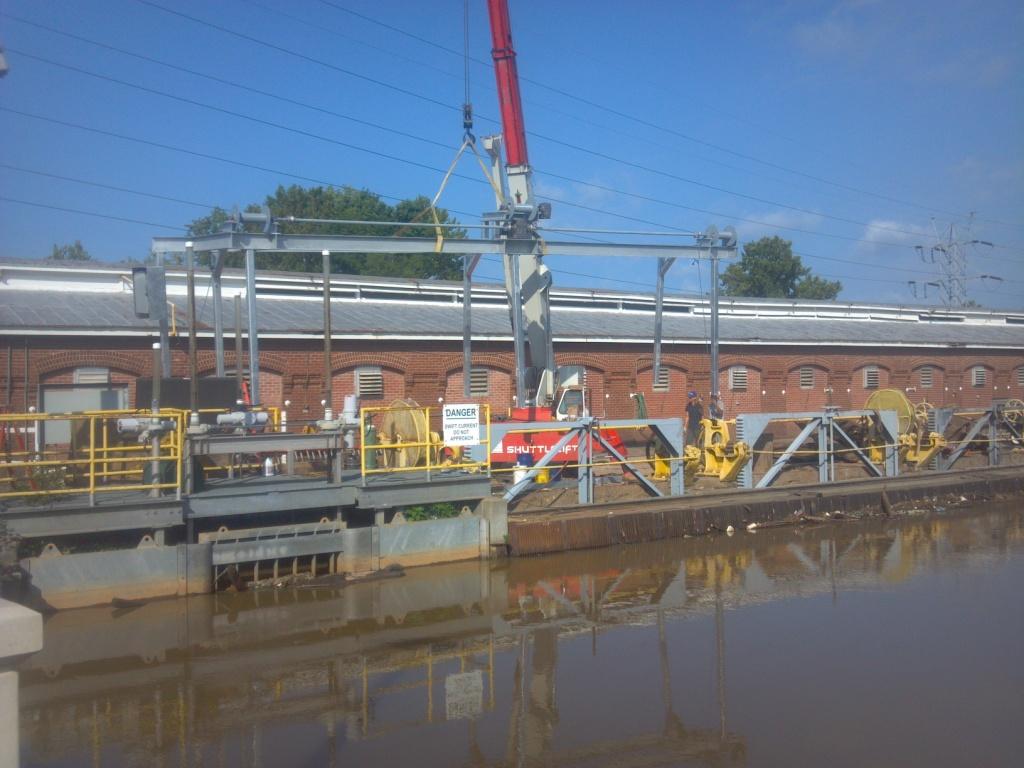

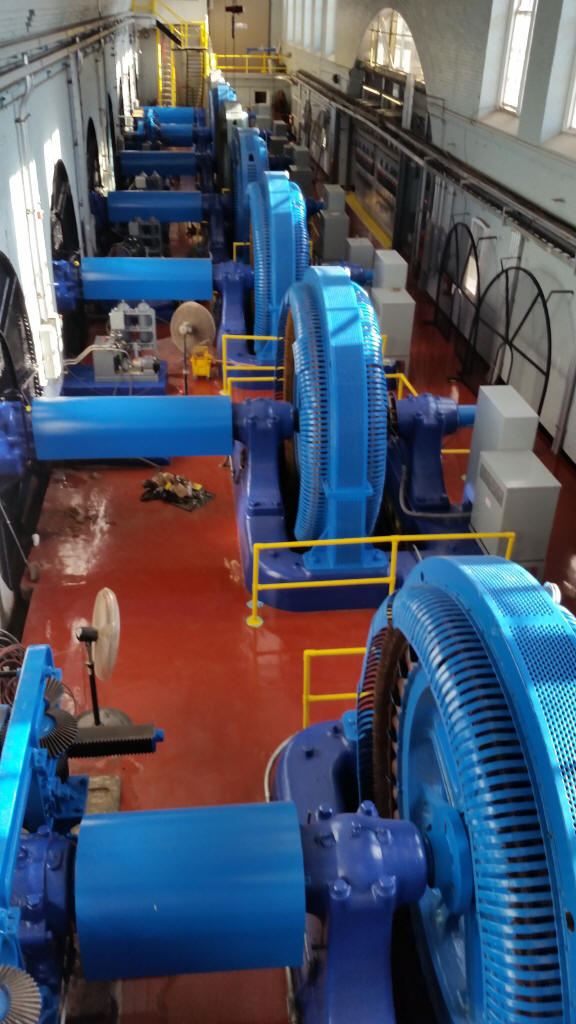

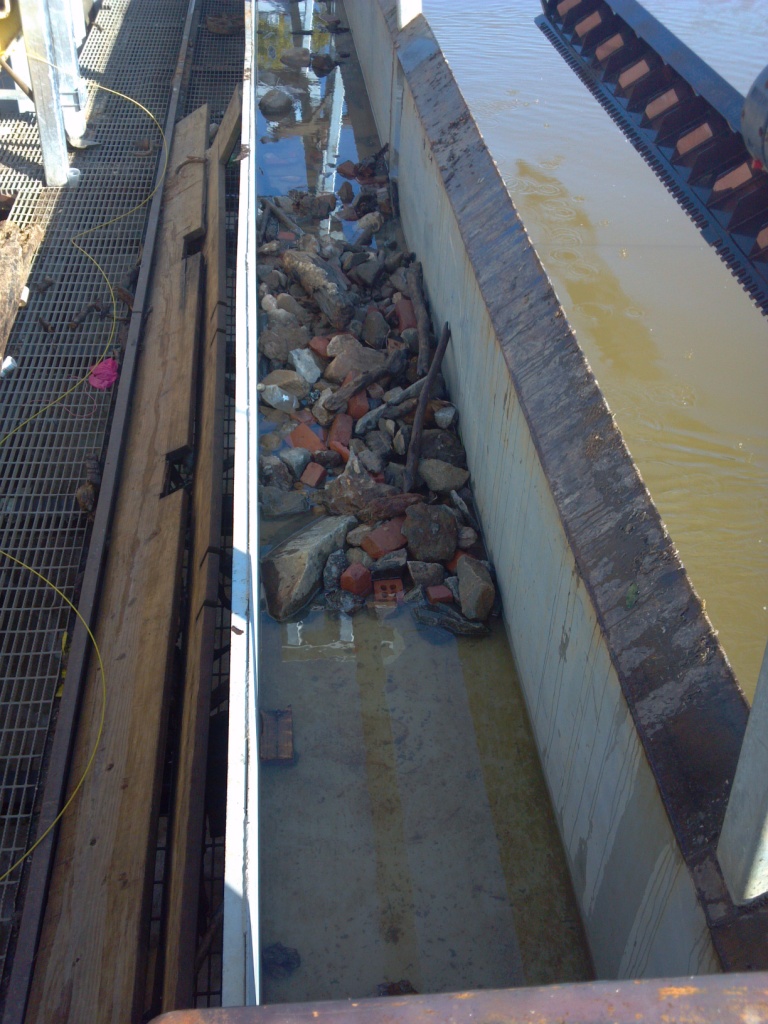

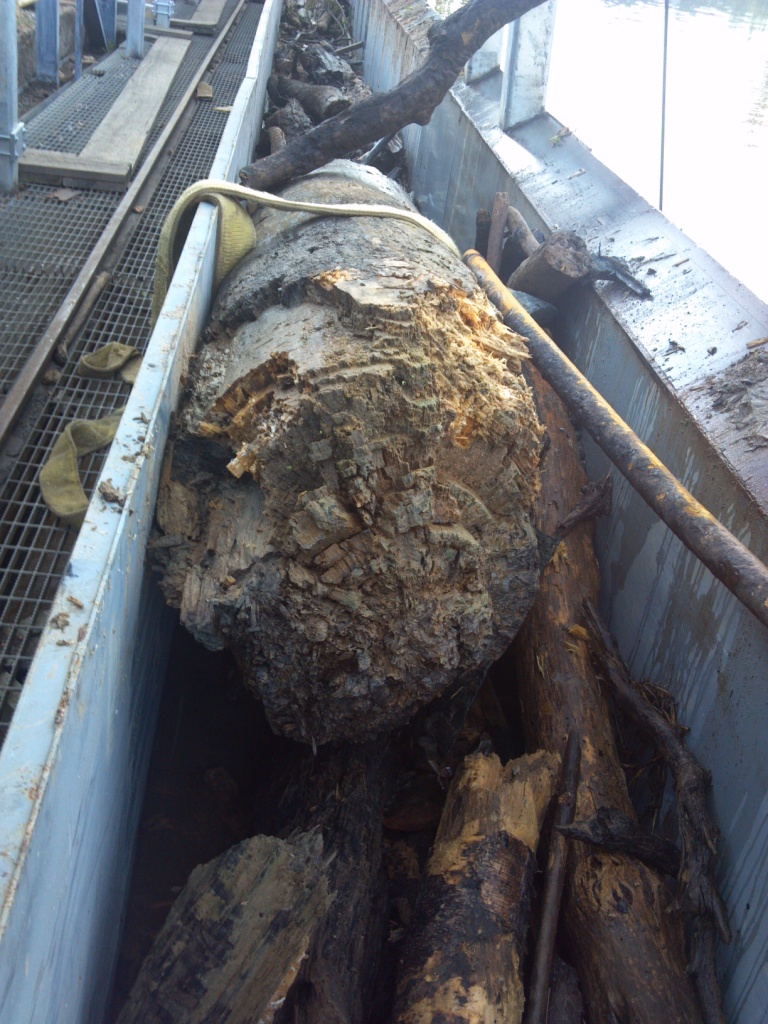

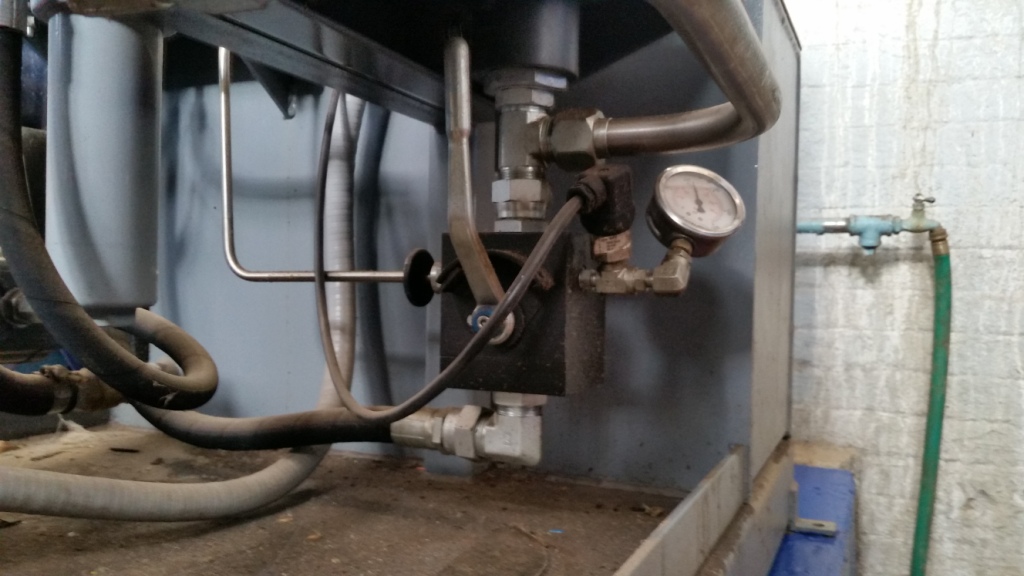

NEW SWITCHGEAR, REWIRE, PLC CONTROLS, PROTECTION, HPU GATE CONTROLS, STATIC EXCITATION, AND FOUR DRAGRAKES

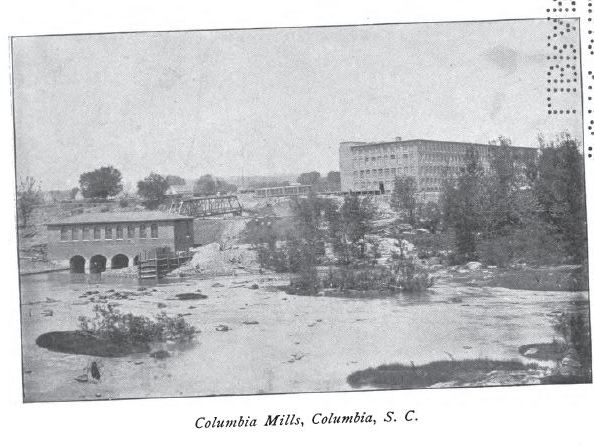

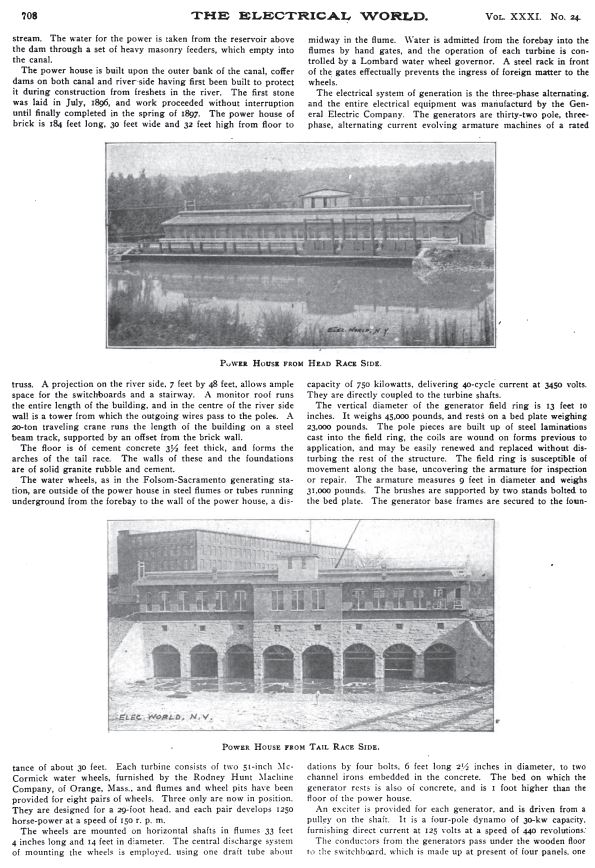

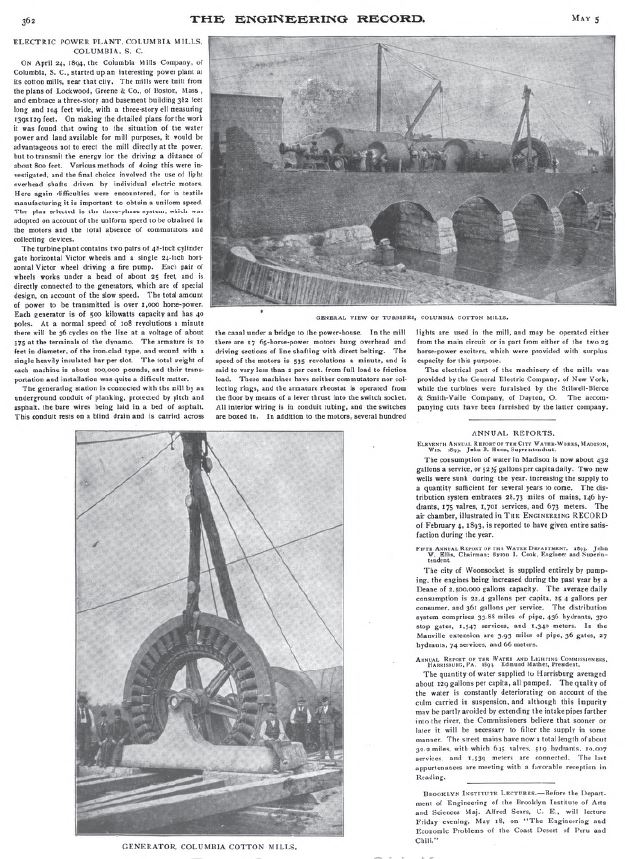

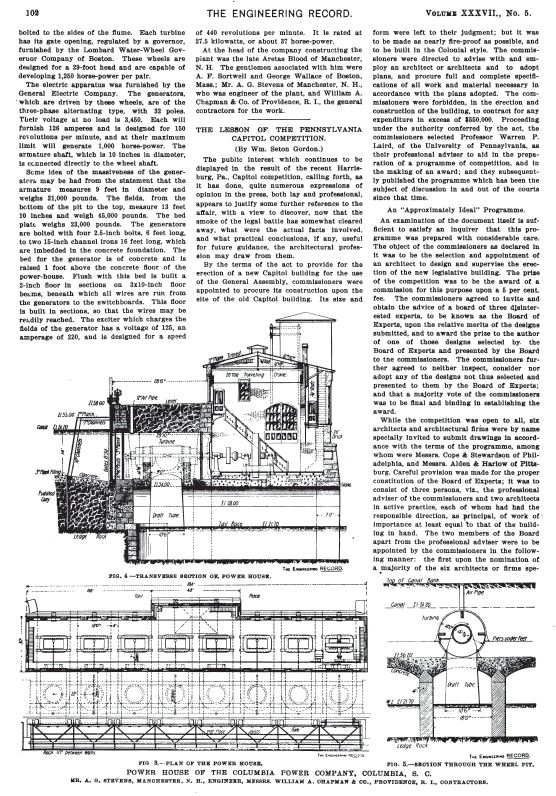

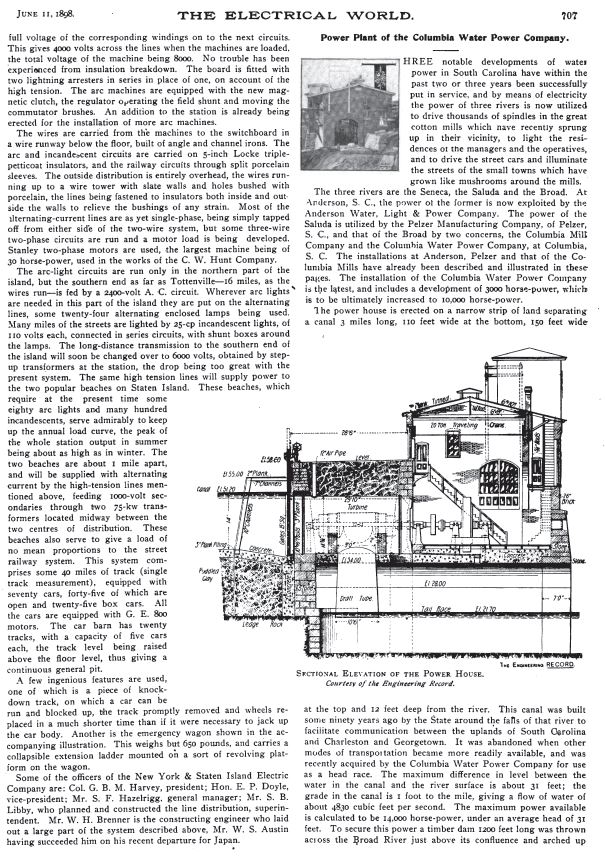

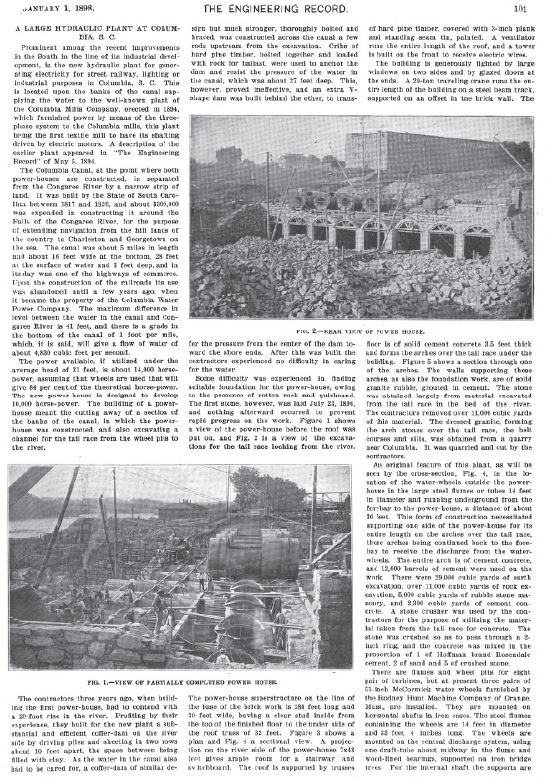

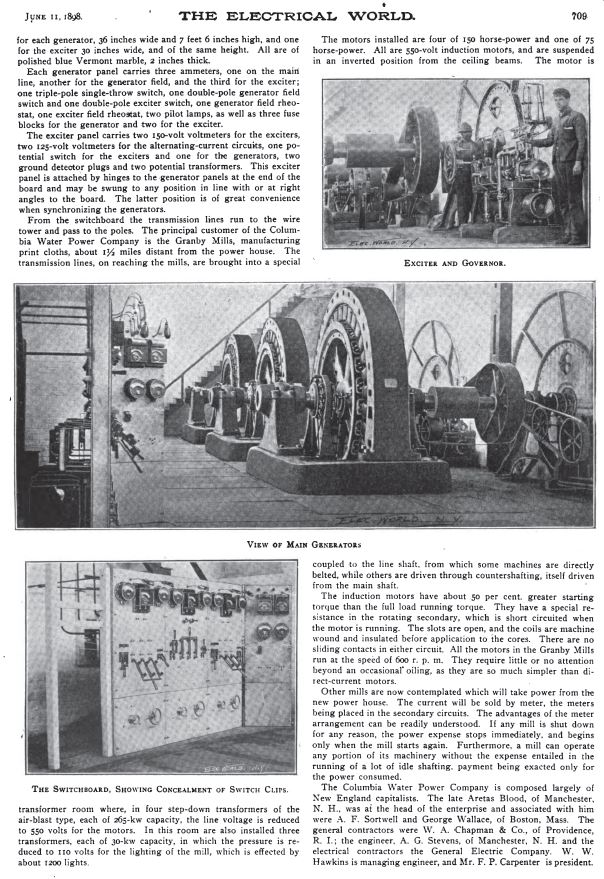

Columbia Canal was built in 1896 and was the first AC generating plant in the world to generate and transmit power to a textile mill. It is the second oldest continuously operating AC hydro plant in the world. NFEI contracted to design, fabricate and install all new equipment as shown below.

1896                                                                                                                   TODAY

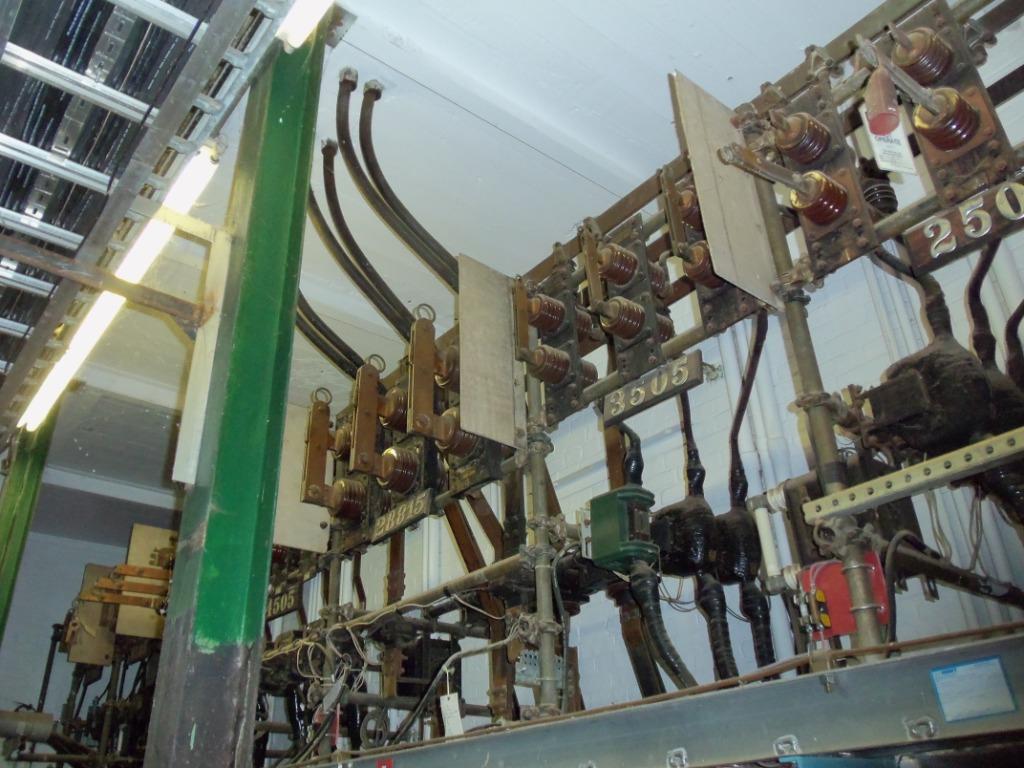

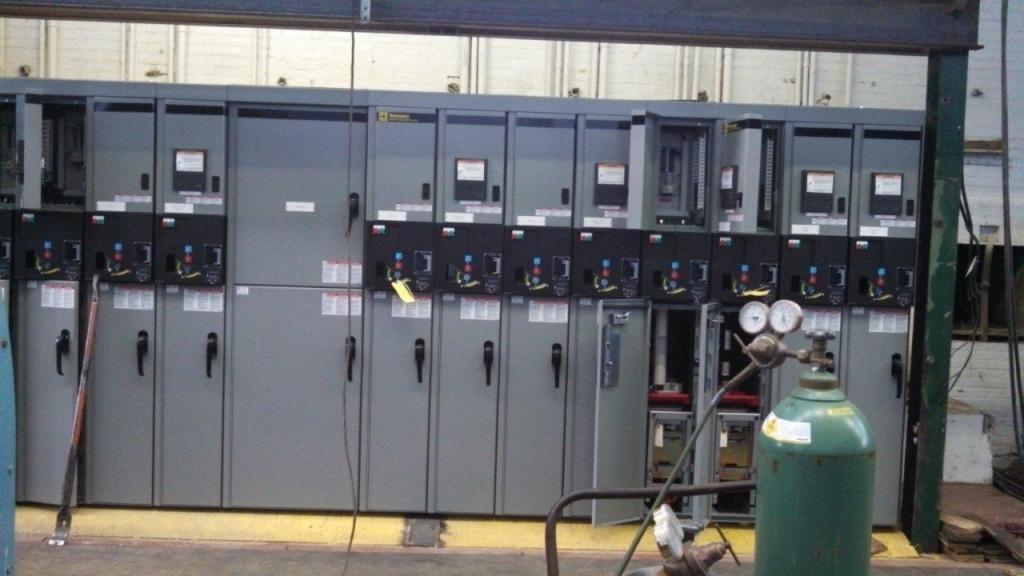

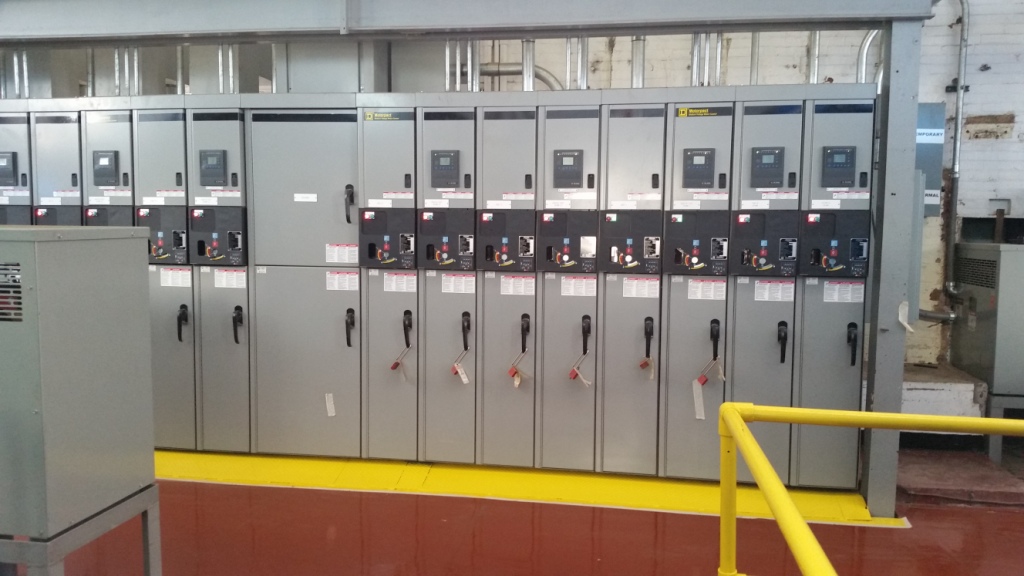

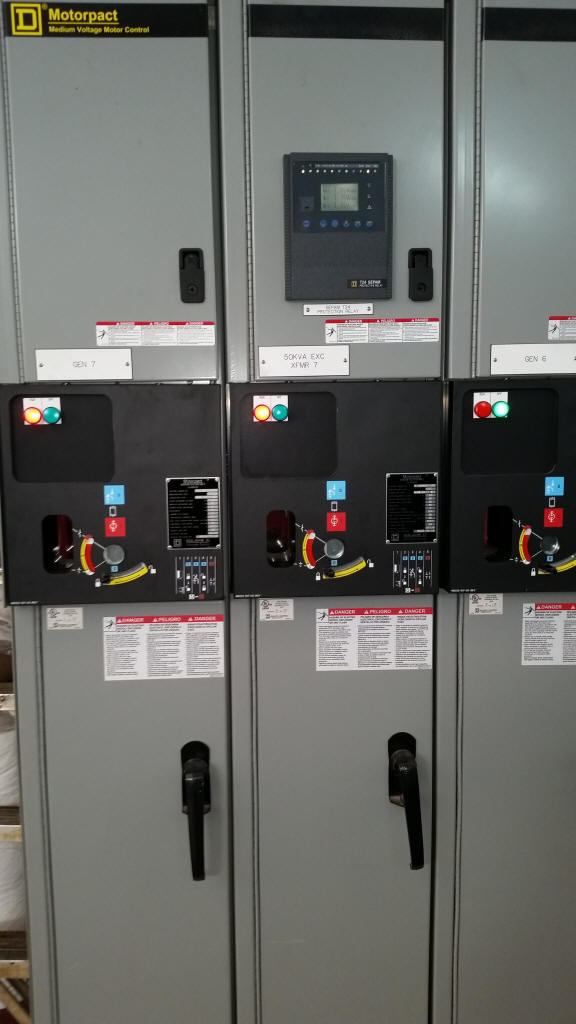

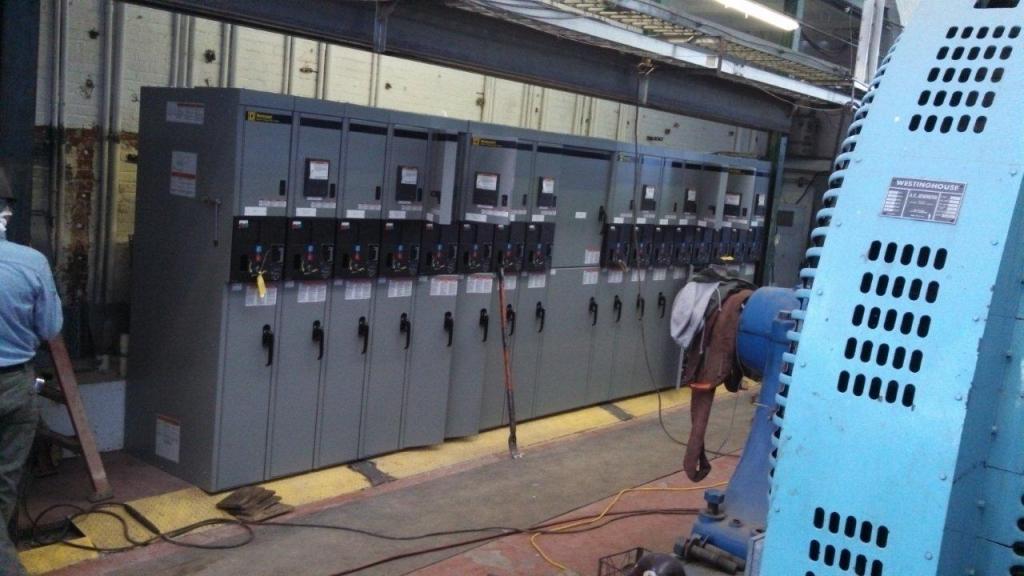

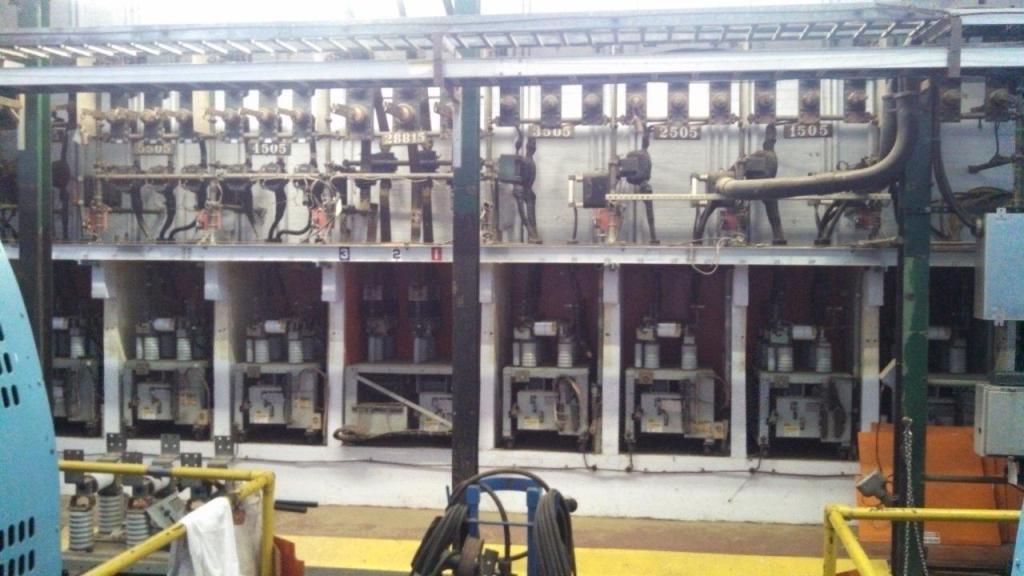

OPEN BUS SWITCHGEAR

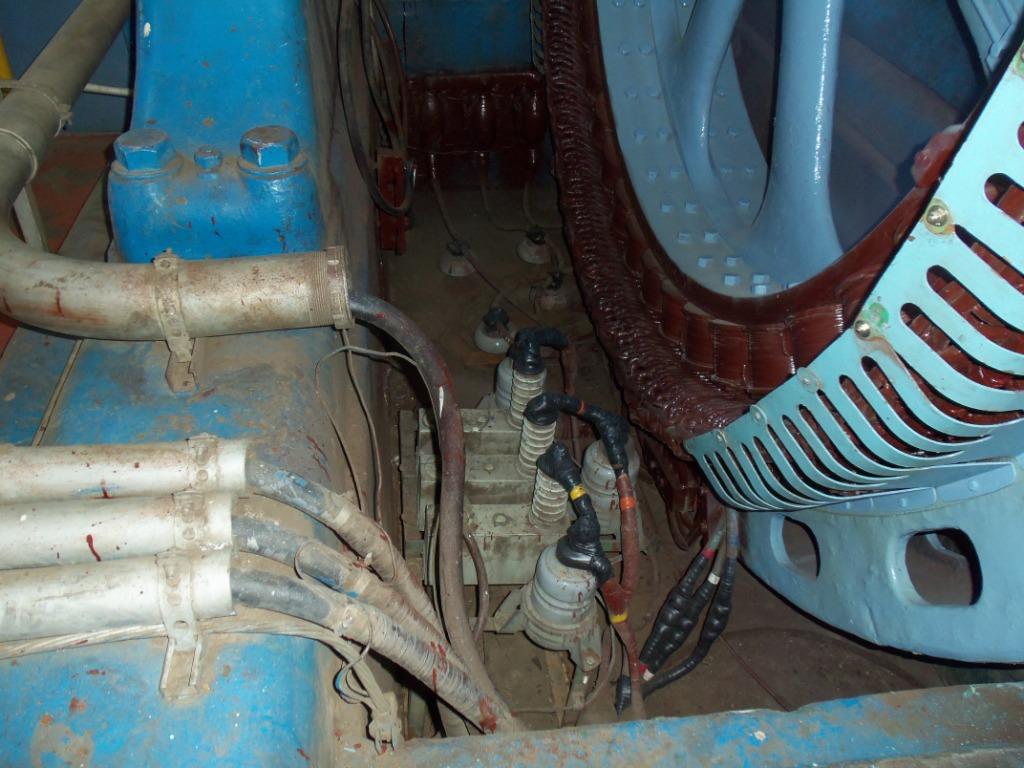

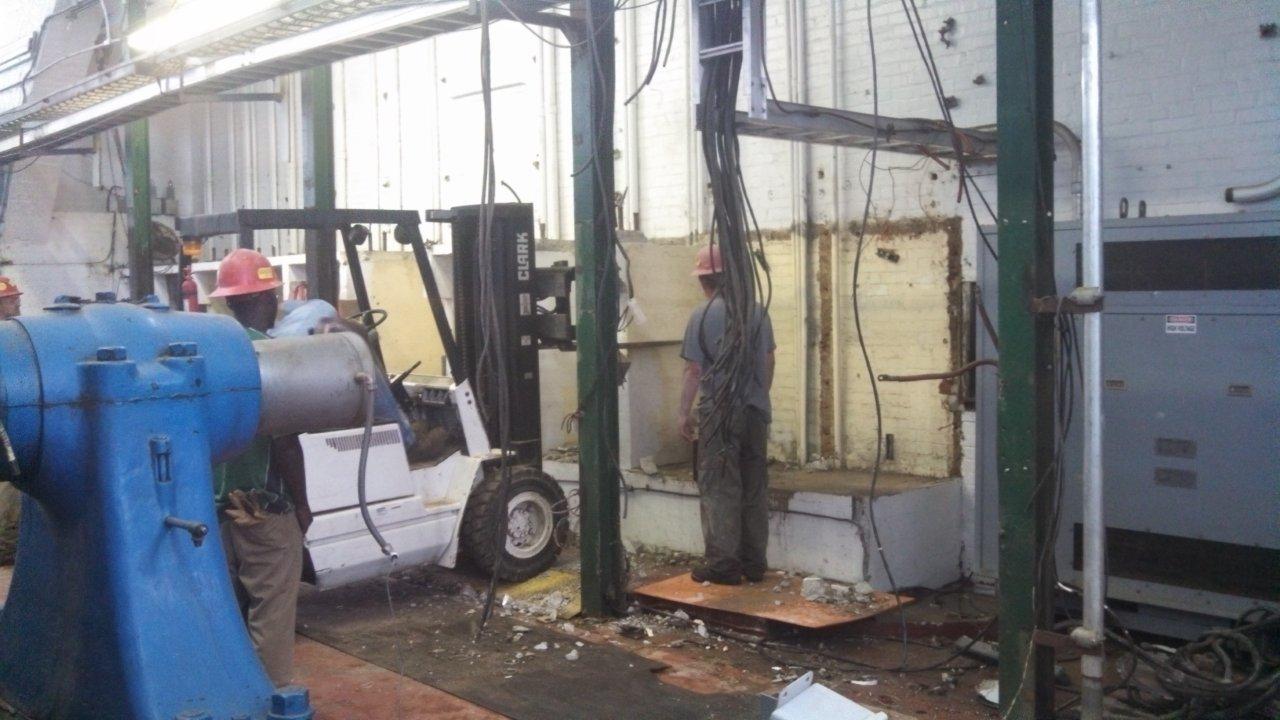

 ALL MEDIUM VOLTAGE WIRING REPLACED






ALL MEDIUM VOLTAGE WIRING REPLACED




OPEN BUS SWITCHGEAR

ALL MEDIUM VOLTAGE WIRING REPLACED






OPEN BUS SWITCHGEAR

ALL MEDIUM VOLTAGE WIRING REPLACED

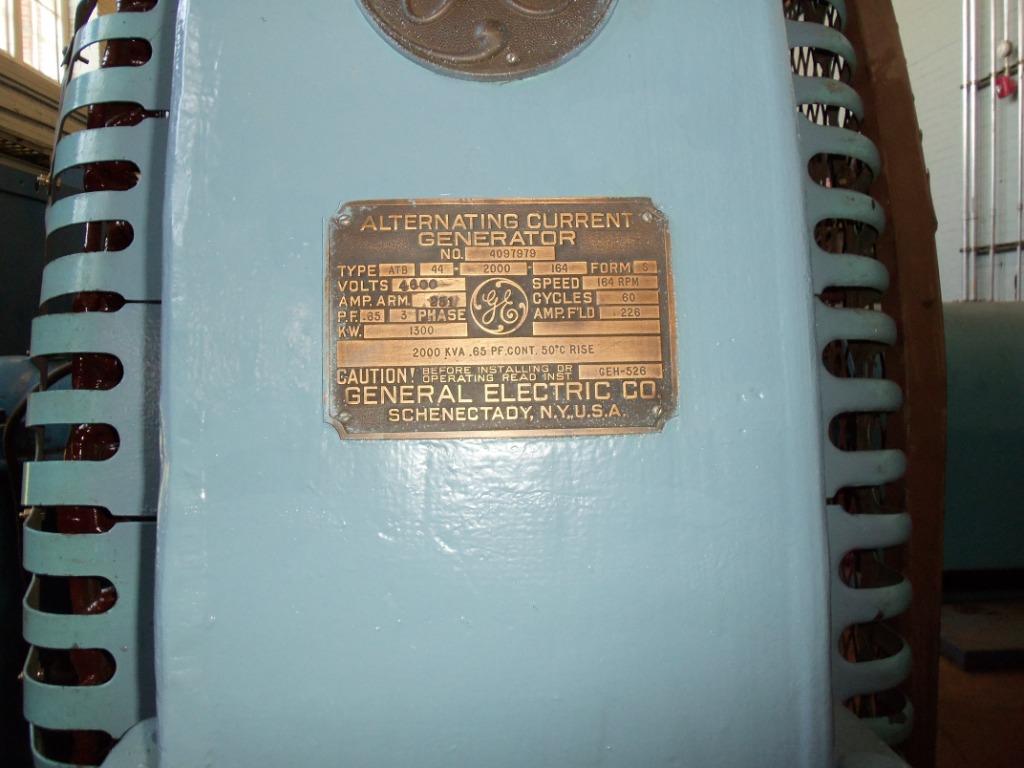

GENERATOR NAMEPLATE

ORIGINAL TURBINES

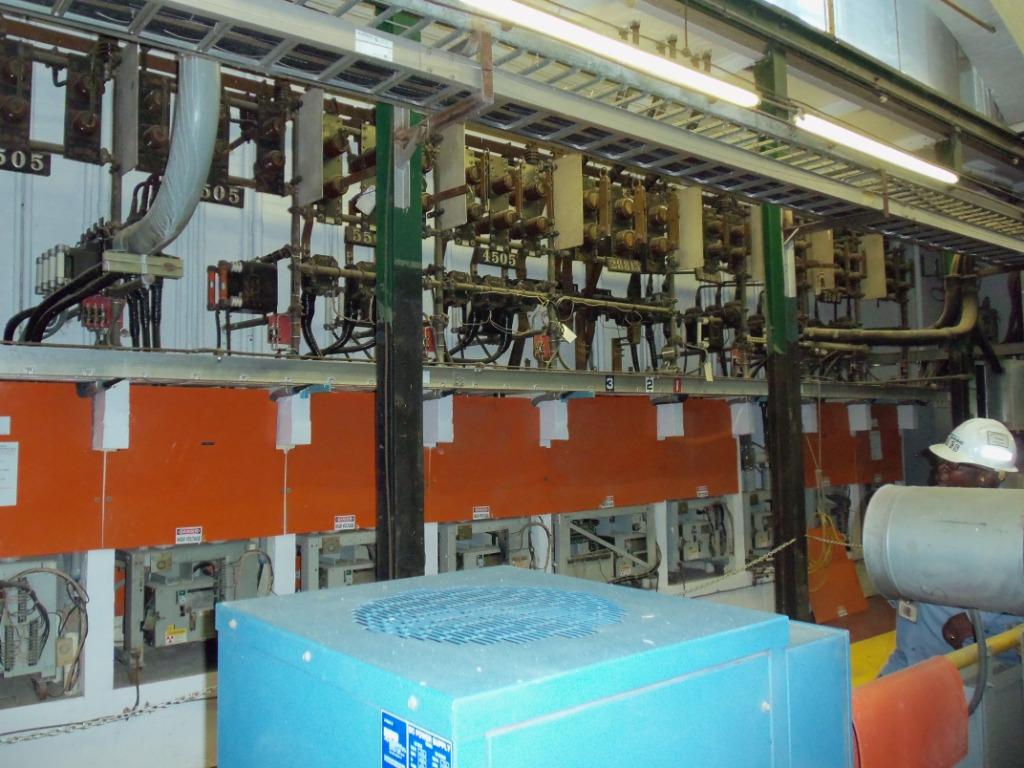

OPEN BUS AND 1980'S BREAKER RETROFIT

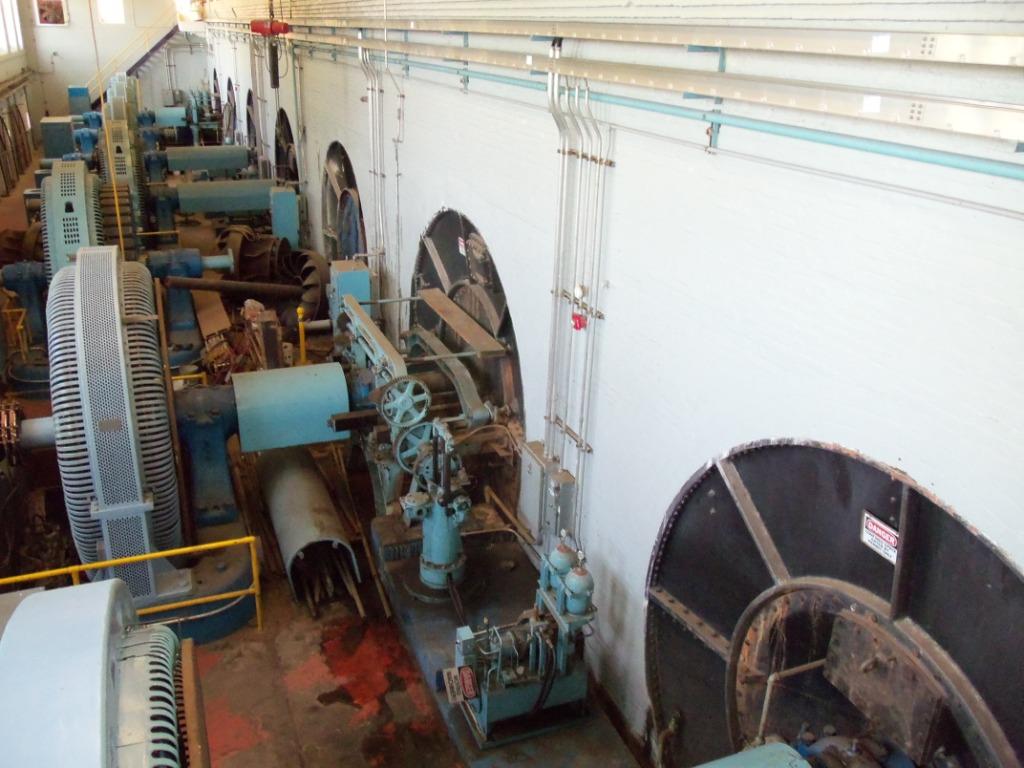

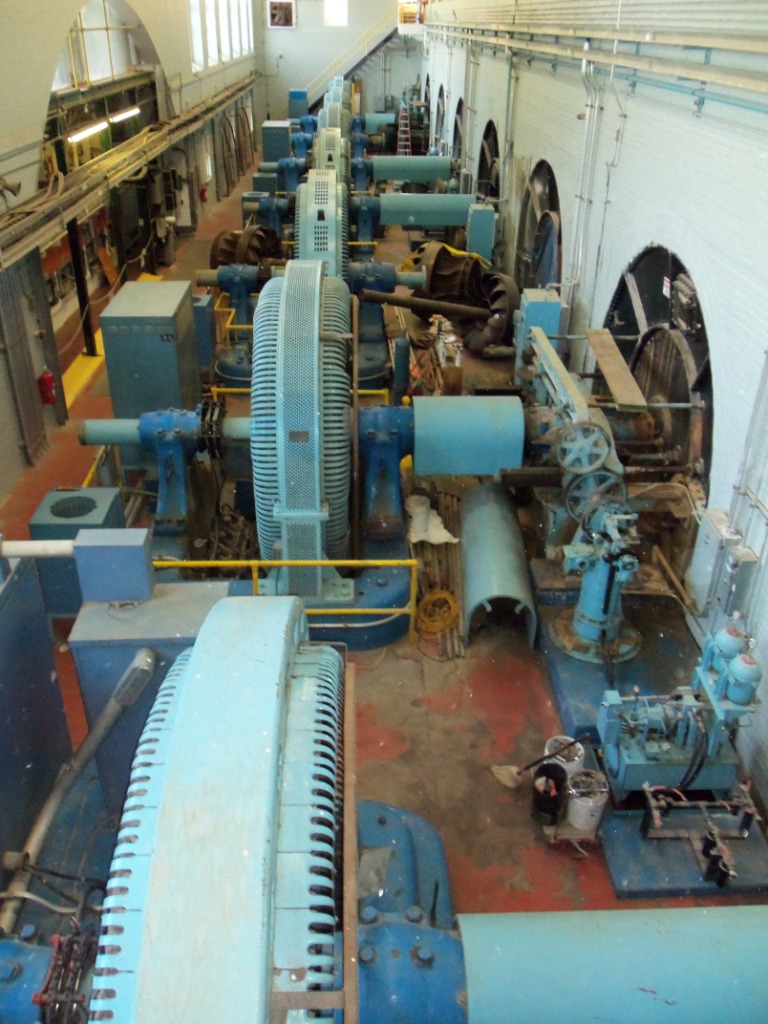

GENERATOR GALLEY BEFORE RENOVATIONS

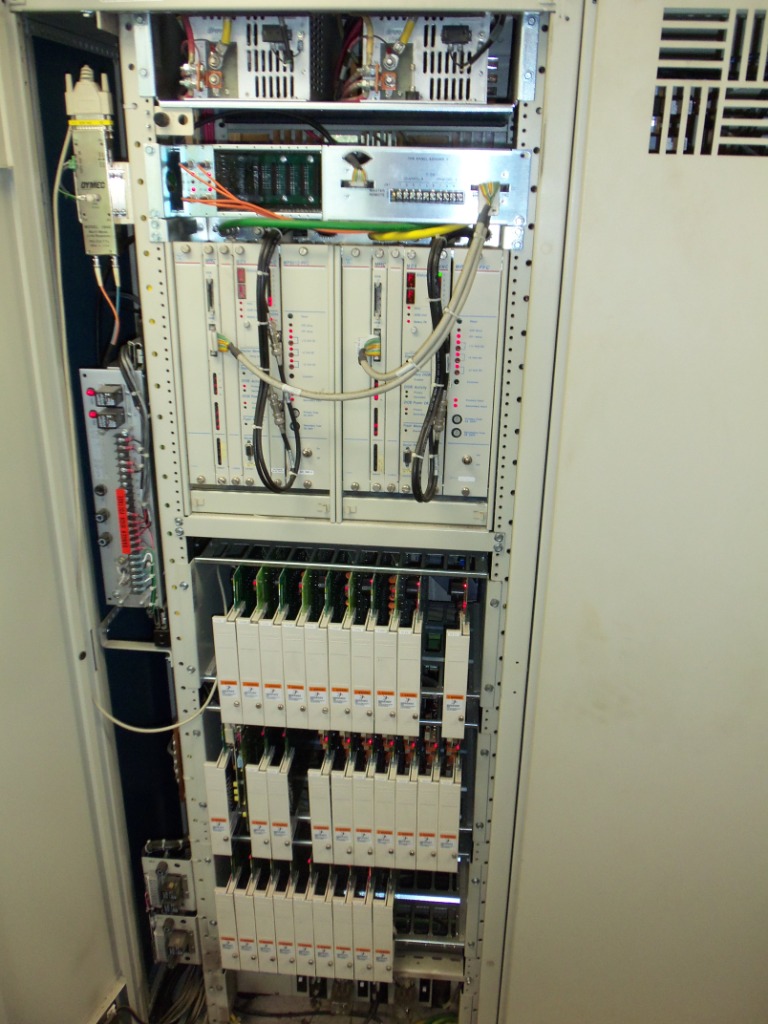

1980'S WESTINGHOUSE WDPF CONTROLS

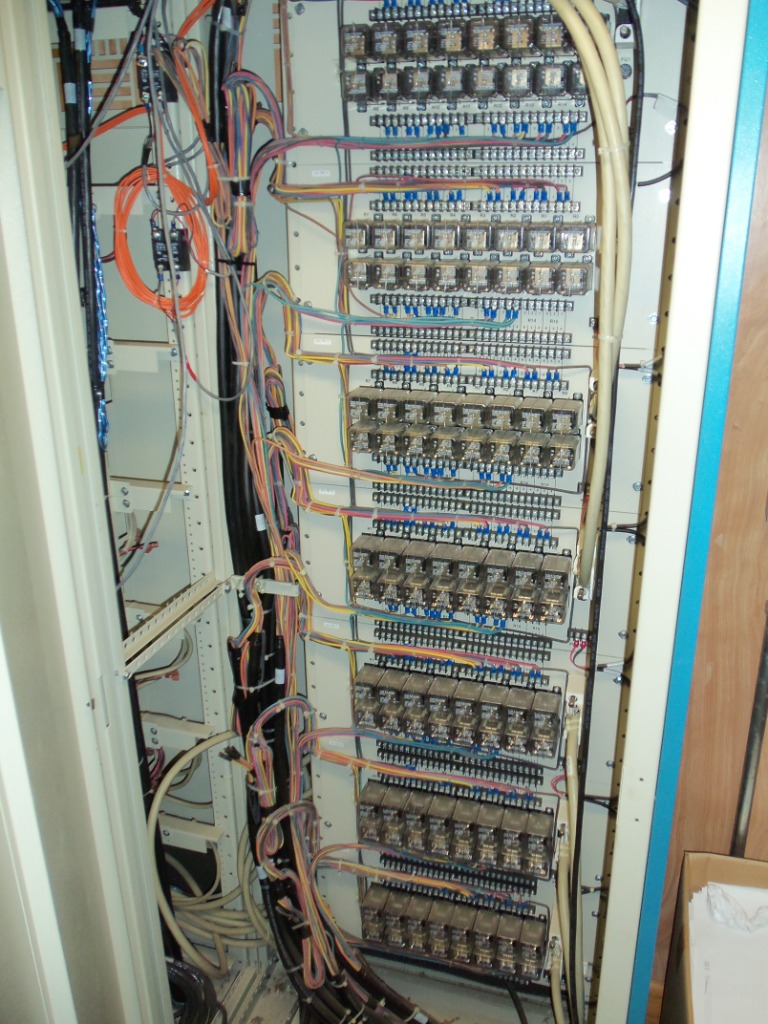

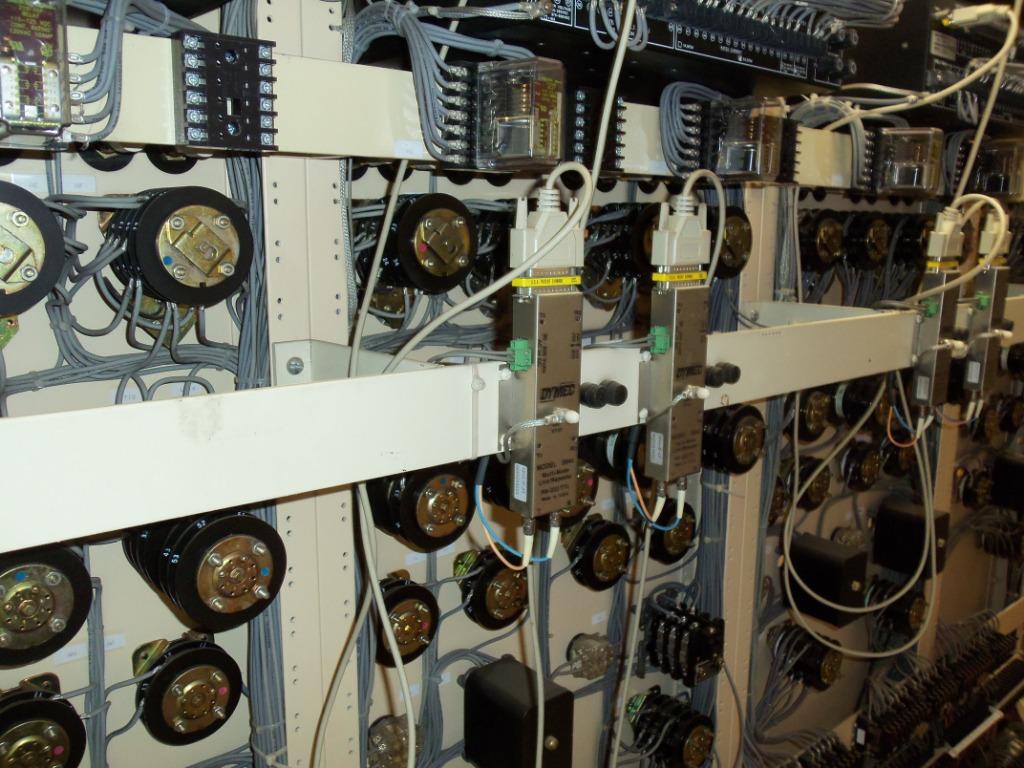

CONTROL RELAYS



1980'S CONTROL BOARD

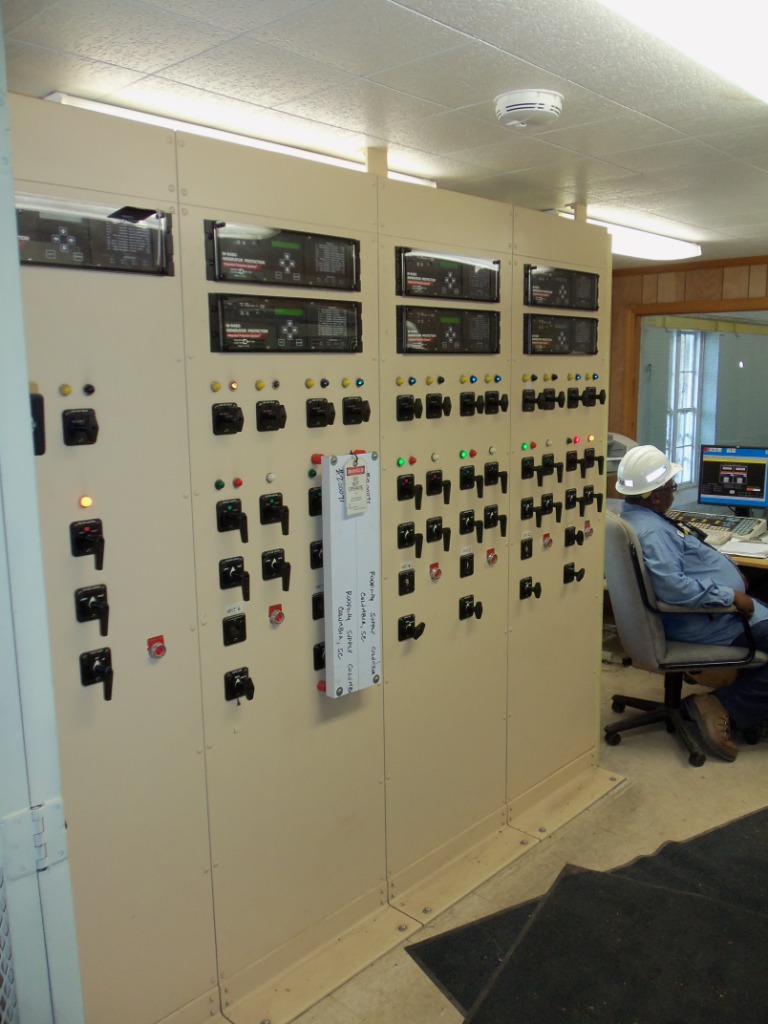

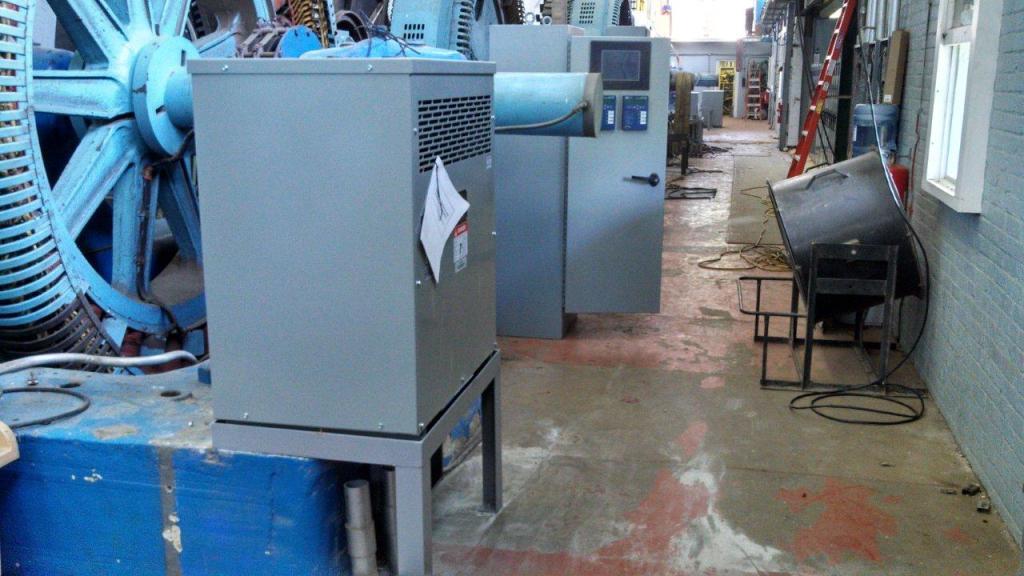

TWIN-UNIT PLC CONTROL PANEL LOCATED BETWEEN TWO UNITS

REPLACES WDPF CONTROL

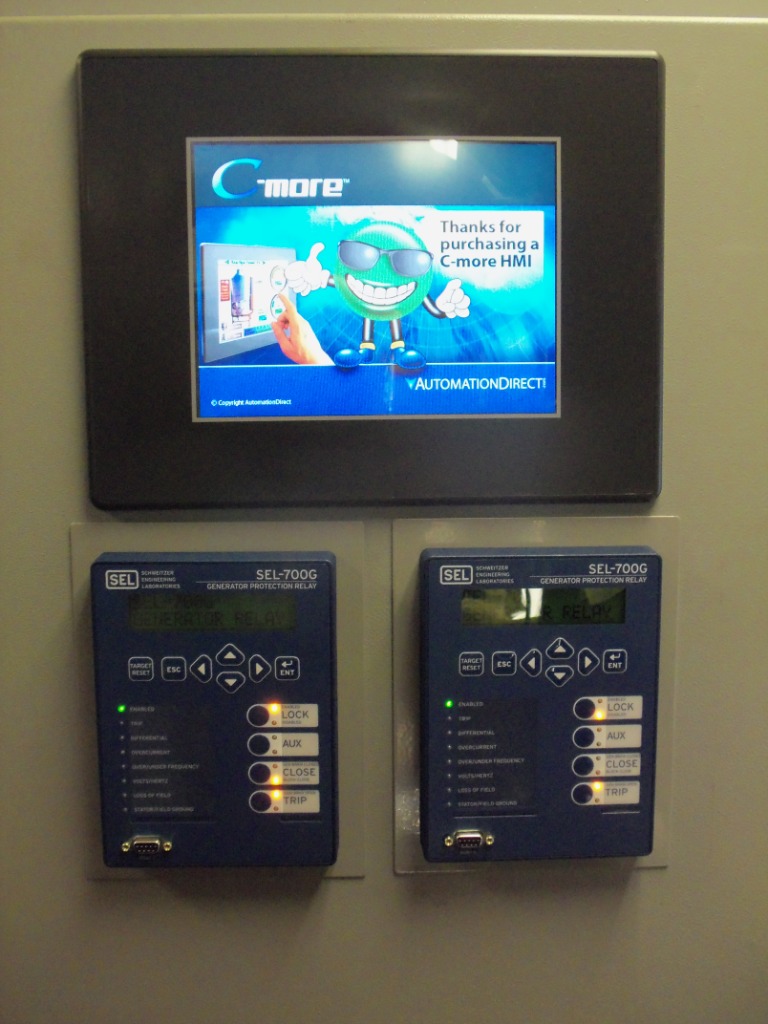

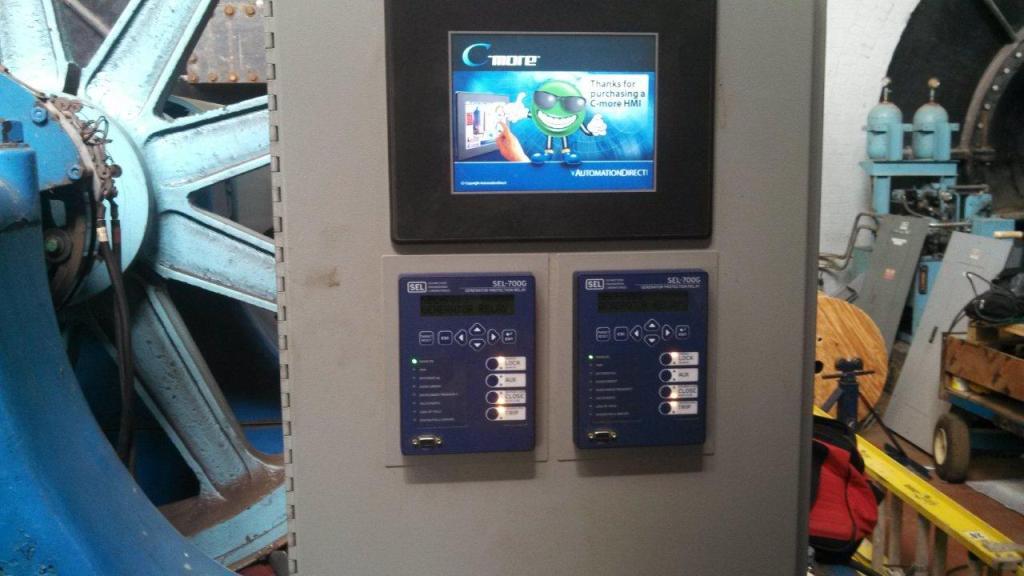

LOCAL TOUCH SCREEN HMI AND SEL 700 G PROTECTIVE RELAYS

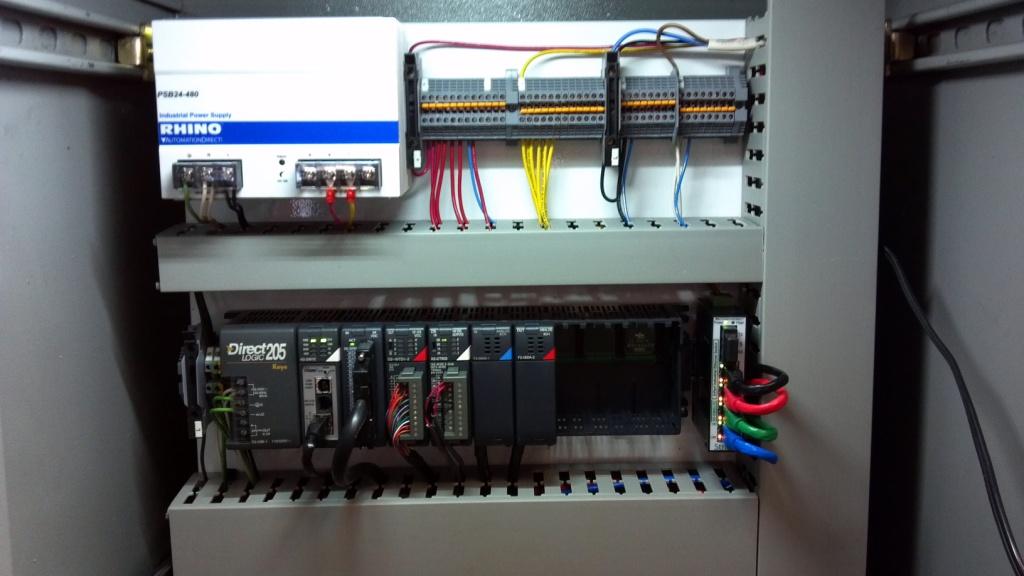

AUTOMATION DIRECT DO-MORE PLC PROVIDES FULL AUTOMATION AND PROTECTION

PLC CONTROL INCLUDES STATIC EXCITATION  VOLTAGE MATCHING AND VAR CONTROL

FULL AUTO SYNC FUNCTION

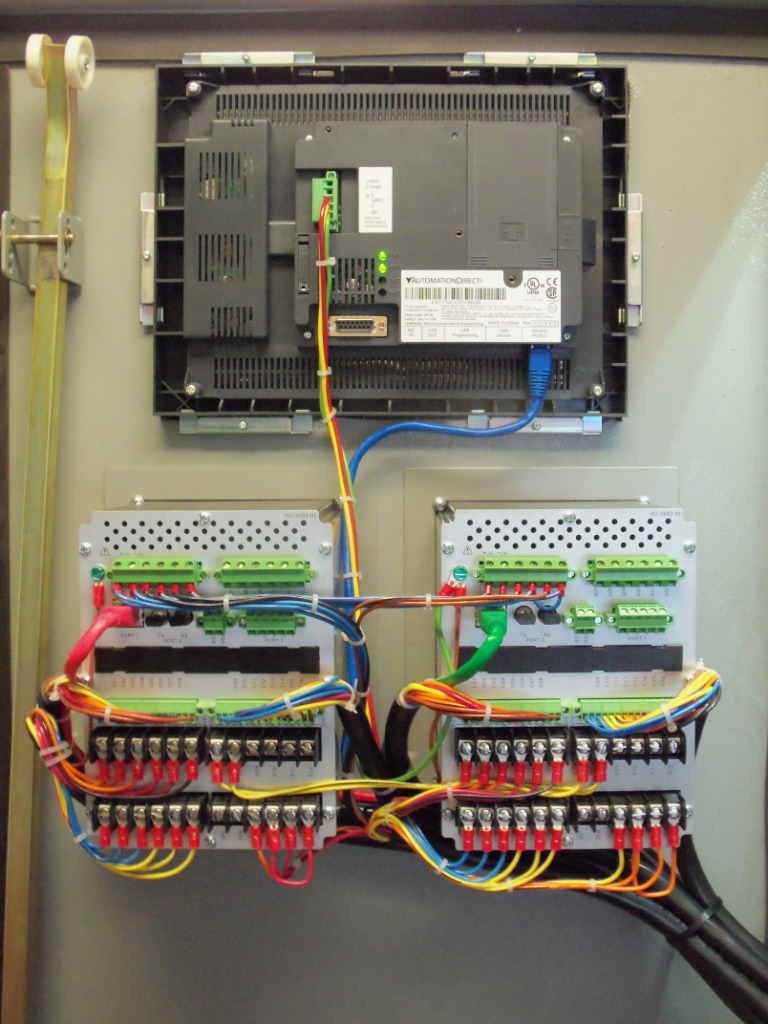

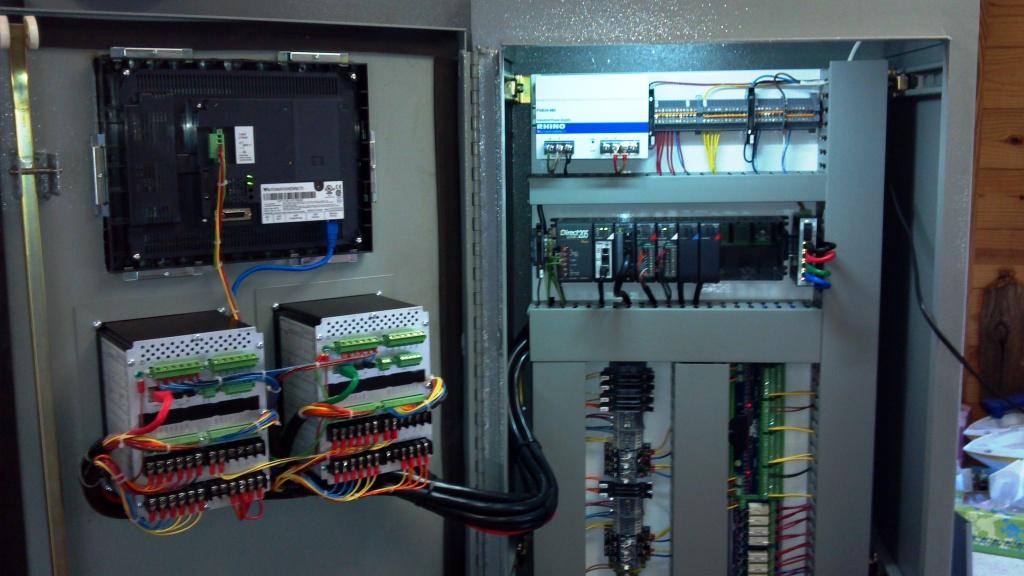

REAR VIEW OF SEL 700G PROTECTIVE RELAYS



FIBER-OPTIC COMMUNICATIONS FROM UNIT TO UNIT AND LOOKOUT HMI

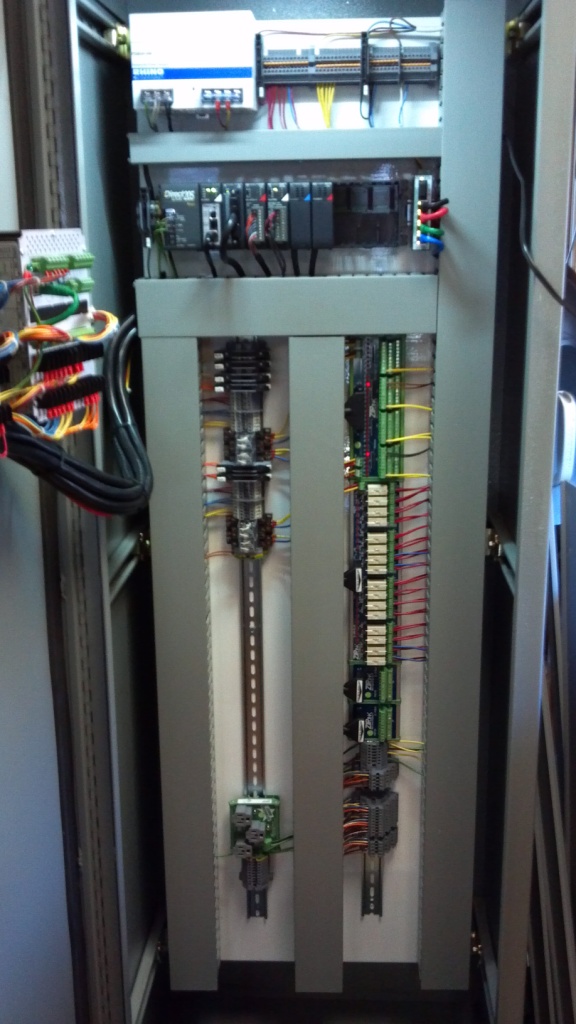

32 DIGITAL INPUTS / 16 RELAY OUTPUTS / 8 4-20ma / 0-10VDC ANALOG INPUTS

0-10 ANALOG OUTPUTS

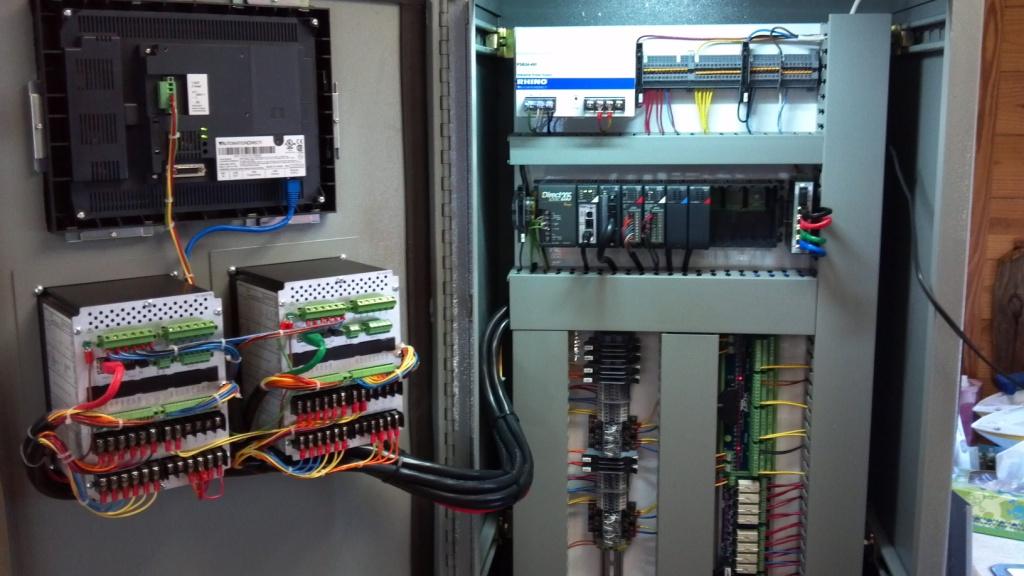

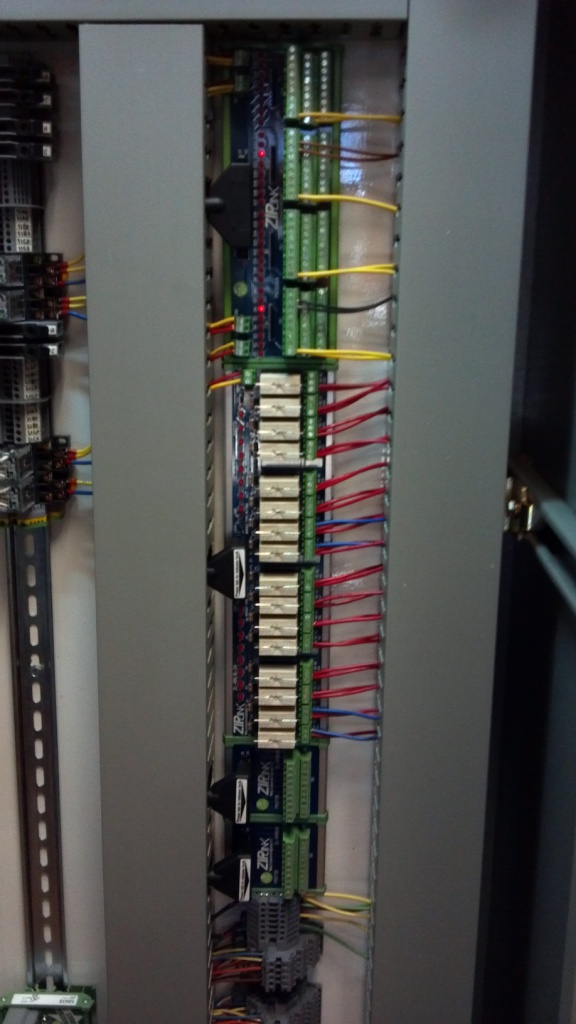

OVERALL VIEW OF REAR BACK PANEL





FIBER-OPTIC COMMUNICATIONS FROM UNIT TO UNIT AND LOOKOUT HMI
